Proto MIDI breath-control2
proposed by Prof.Satoshi Nishimura image00 / Jichi Med Univ(JAPAN)

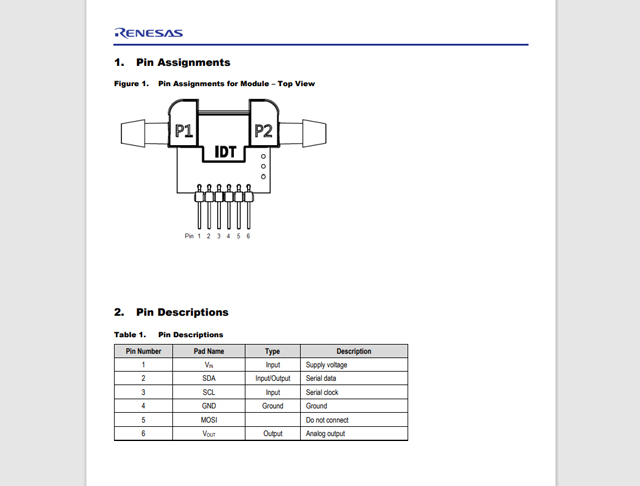

Specs: Signals of air-flow sensors (FS2101, renesas) are used for keyboard play.

E-mail: If interested (snishi-tky(a-mark)ninus.ocn.ne.jp ) image00

Back to top image00






			#include < Wire.h >
				#include < Arduino.h >

				#define SENSORADDRESS 0x07 // each I2C object has a unique bus address, the DS1307 is 0x68

				void setup()
				{
				 Wire.begin(); // wake up I2C bus
				 delay (500);
				 Serial.begin(9600);

				}


				void loop()
				{

					Wire.beginTransmission(SENSORADDRESS);
					Wire.write(1);
					Wire.endTransmission();
					delay (20);

					Wire.requestFrom(SENSORADDRESS, 2);

					for (int i=0;i < 20;i++)
					  {
							int aread = analogRead(0);
						   Serial.print( "an:" );
						   Serial.println(aread);
						   delay (10);
					  }


					  while(Wire.available() == 0){};

						byte a     = Wire.read();
						byte b     = Wire.read();

						 int flow =  ((a << 8) + b) / 10;
						 Serial.print("Flow  ");
						 Serial.println(flow);
				}
