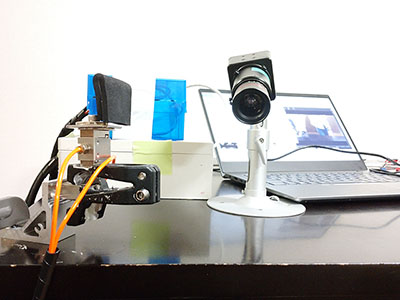

Proto gravity center visualizer
proposed by Prof.Satoshi Nishimura / Jichi Med Univ(JAPAN)

Specs: Visualize gravity center just holding strain-sensor.
E-mail: If interested (snishi-tky(a-mark)ninus.ocn.ne.jp )

Back to top


			using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using MccDaq;
using System.IO;

namespace GC004
{
    public partial class Form1 : Form
    {
        public const int NUMOFBLKS = 8;
        public const int PACKETSIZE = 8;
        public const int CHANCOUNT = 4;
        public const int FIRSTCHANNEL = 0;
        public const int LASTCHANNEL = 3;
        public const int FREQ = 100;
        public const string DEVICE = "USB-1208LS";
        public static MccBoard daq;

public        int BoardNum = 0;
public        int Rate = FREQ;
public        bool ReadLower = true;

public        double tmpch0 = 0.0;
 public       double tmpch1 = 0.0;
        public Form1()
        {
            InitializeComponent();

        }

        private void Form1_Load(object sender, EventArgs e)
        {
            label1.Text = "Start";
            label2.Text = "LoadCell X:";
            label3.Text = "LoadCell Y:";

            label5.Text = "BodyGC X:";
            label6.Text = "BodyGC Y:";
            label7.Text = "AD board no.";

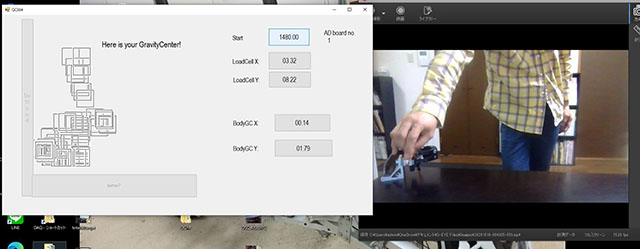

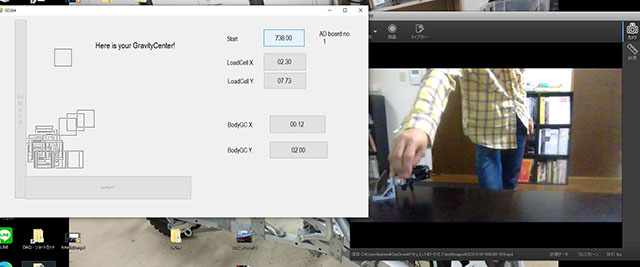

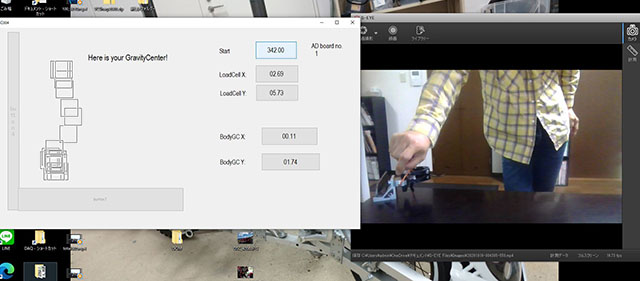

            label8.Text = "Here is your GravityCenter!";

            this.Text = Application.ProductName;
            timer1.Interval = 2000;
            timer1.Enabled = false;
        }
            private void MainP()
        {
            Bitmap canvas = new Bitmap(pictureBox1.Width, pictureBox1.Height);
            Graphics grp = Graphics.FromImage(canvas);
            Pen pblack = new Pen(Color.Black, 1);
            Pen pwhite = new Pen(Color.White, 1);

            BoardNum = GetBoardNum(DEVICE);
                int BUFFERSIZE = PACKETSIZE * CHANCOUNT * NUMOFBLKS;
                int HALFBUFFSIZE = BUFFERSIZE / 2;
                daq = new MccDaq.MccBoard(BoardNum);
                IntPtr buffer = MccService.WinBufAllocEx(BUFFERSIZE);

                short[] chArray = new short[CHANCOUNT]; //configuration array for channel numbers
                Range[] chRange = new Range[CHANCOUNT]; //configuration array for input ranges

                chArray[0] = 0;
                chArray[1] = 1;
                chArray[2] = 2;
                chArray[3] = 3;

                chRange[0] = Range.Bip10Volts;
                chRange[1] = Range.Bip10Volts;
                chRange[2] = Range.Bip10Volts;
                chRange[3] = Range.Bip10Volts;

                IsError(daq.ALoadQueue(chArray, chRange, CHANCOUNT));

            ScanOptions options = ScanOptions.Background | ScanOptions.Continuous| ScanOptions.NoCalibrateData;

                //setup the acquisiton
                IsError(daq.AInScan(FIRSTCHANNEL,
                                        LASTCHANNEL,
                                        BUFFERSIZE,
                                        ref Rate,
                                        Range.Bip10Volts,
                                        buffer,
                                        options)
                        );


                int Count = 0;
                int Index = 0;
                short daqStatus;

                ushort[] ushortArray = new ushort[BUFFERSIZE];
            double height = 0.9;
            double width = 0.50;
            double bodyweight = 50.0;

            double indexA = 0.0;
            double indexB = 0.0;
            double finalX = 0.0;
            double finalY = 0.0;
            int posX;
            int posY;

            for (int k = 0; k < 10000; k++)
            {
                IsError(daq.GetStatus(out daqStatus, out Count, out Index, FunctionType.AiFunction));

                if ((Index >= HALFBUFFSIZE) & ReadLower) //check for 50% more data
                {

                    IsError(MccService.WinBufToArray(buffer, ushortArray, 0, HALFBUFFSIZE));
                    tmpch0 = DisplayData(ushortArray, HALFBUFFSIZE / CHANCOUNT, 0);
                    ReadLower = false; //flag that controls the next read
                }
                else if ((Index < HALFBUFFSIZE) & !ReadLower)
                {
                    IsError(MccService.WinBufToArray(buffer, ushortArray, HALFBUFFSIZE, HALFBUFFSIZE));
                    tmpch0 = DisplayData(ushortArray, HALFBUFFSIZE / CHANCOUNT, 0);
                    ReadLower = true;//flag that controls the next read
                }

                button3.Text = tmpch0.ToString("00.00");
                button3.Update();


                System.Threading.Thread.Sleep(10);
                IsError(daq.GetStatus(out daqStatus, out Count, out Index, FunctionType.AiFunction));

             if ((Index >= HALFBUFFSIZE) & ReadLower) //check for 50% more data
          {
                //get lower half of buffer
                    IsError(MccService.WinBufToArray(buffer, ushortArray, 0, HALFBUFFSIZE));
                    tmpch1 = DisplayData(ushortArray, HALFBUFFSIZE / CHANCOUNT, 1);
                    ReadLower = false; //flag that controls the next read
        }
       else if ((Index < HALFBUFFSIZE) & !ReadLower)
             {
                    //get the upper half
                IsError(MccService.WinBufToArray(buffer, ushortArray, HALFBUFFSIZE, HALFBUFFSIZE));
                  tmpch1 = DisplayData(ushortArray, HALFBUFFSIZE / CHANCOUNT, 1);
                ReadLower = true;//flag that controls the next read
            }

                button2.Text = tmpch1.ToString("00.00");
                button2.Update();
                button1.Text = k.ToString("00.00");
                button1.Update();

                if (tmpch0 == 0) { tmpch0 = 0.01; }

                indexA = (tmpch1 * width / tmpch0 + height) / bodyweight;
                indexB = width / tmpch0 - indexA;

                finalX = tmpch0 * indexA;
                finalY = (bodyweight - tmpch1) * indexA;

                if (finalX > 2.0) { finalX = 2.0; };
                if (finalX < -2.0) { finalX = -2.0; };
                if (finalY > 2.0) { finalY = 2.0; };
                if (finalY < -1.0) { finalY = -1.0; };

                button5.Text = finalX.ToString("00.00");
                button6.Text = finalY.ToString("00.00");
                button5.Update();
                button6.Update();

                label4.Text = BoardNum.ToString("0");
                label4.Update();

                grp.DrawRectangle(pblack, 200 - (int)(finalX * 800.0), 200 + (int)(finalY * 100.0), 50, 50);
                grp.DrawRectangle(pwhite, 200 - (int)(finalX * 800.0)-1, 200 + (int)(finalY * 100.0)-1, 52, 52);
                grp.DrawRectangle(pwhite, 200 - (int)(finalX * 800.0)+1, 200 + (int)(finalY * 100.0)+1, 48, 48);

                grp.DrawRectangle(pblack, 200 - (int)(finalX * 800.0), 200 + (int)(finalY * 100.0), 50, 50);
                grp.DrawRectangle(pwhite, 200 - (int)(finalX * 800.0) - 2, 200 + (int)(finalY * 100.0) - 2, 54, 54);
                grp.DrawRectangle(pwhite, 200 - (int)(finalX * 800.0) + 2, 200 + (int)(finalY * 100.0) + 2, 46, 46);

                System.Threading.Thread.Sleep(10);

                pictureBox1.Image = canvas;
                pictureBox1.Update();

            }

            pblack.Dispose();
            grp.Dispose();

            IsError(daq.StopBackground(FunctionType.AiFunction));
                MccService.WinBufFreeEx(buffer);


            }
            public static int IsError(ErrorInfo e)
            {
                if (e.Value != 0)
                {
                    return 1;
                }
                return 0;
            }

            /*////////////////////////////////////////////////////////////////////////////////////*/

            public static int GetBoardNum(string dev)
            {

                for (int BoardNum = 0; BoardNum < 99; BoardNum++)
                {
                    MccDaq.MccBoard daq = new MccDaq.MccBoard(BoardNum);
                    if (daq.BoardName.Contains(dev))
                    {
                        return BoardNum;
                    }
                }
                return -1;
            }


            public static double DisplayData(ushort[] datArray, int rows, int readch)
            {

                int i = 0;
                float temp = 0;
                double temp2 = 0.0;
                double ch1 = 0.0;
                double ch0 = 0.0;




                for (int row = 0; row < rows; row++)
                {



                    IsError(daq.ToEngUnits(Range.Bip10Volts, datArray[i], out temp));
                    temp2 = ((double)temp - 1.44) * 10.0;
                    i++;
                    ch0 = temp2;

                    IsError(daq.ToEngUnits(Range.Bip10Volts, datArray[i], out temp));
                    temp2 = ((double)temp - 1.79) * 10.0;
                    //Console.Write("{0}\t", temp2.ToString("00.00"));
                    i++;
                    ch1 = temp2;

                    IsError(daq.ToEngUnits(Range.Bip10Volts, datArray[i], out temp));
                    i++;

                    IsError(daq.ToEngUnits(Range.Bip10Volts, datArray[i], out temp));
                    i++;

                }
                if (readch == 0)
                {
                    return ch0;
                }
                if (readch == 1)
                {
                    return ch1;
                }
                return 5.0;
            }

        private void timer1_Tick(object sender, EventArgs e)
        {
            DateTime d = DateTime.Now;
            label1.Text = d.Hour + ":" + d.Minute + ":" + d.Second;
        }

        private void button1_Click(object sender, EventArgs e)
        {
            MainP();
        }

        private void button4_Click(object sender, EventArgs e)
        {

        }

        private void pictureBox1_Click(object sender, EventArgs e)
        {

        }
    }
    }
