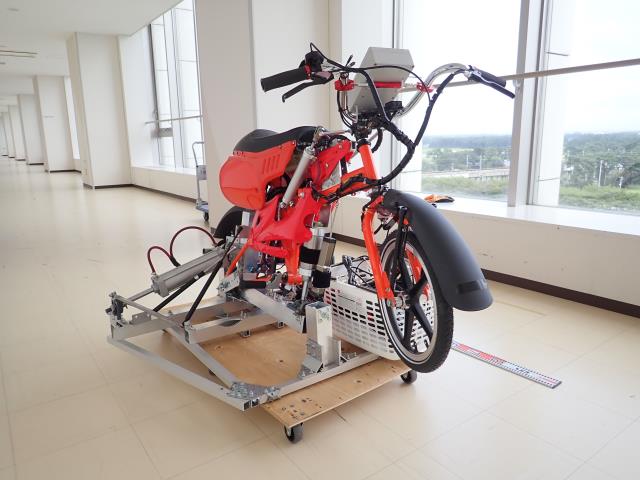

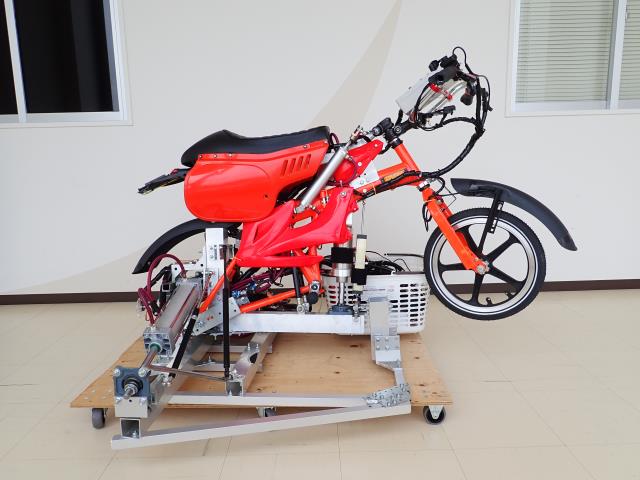

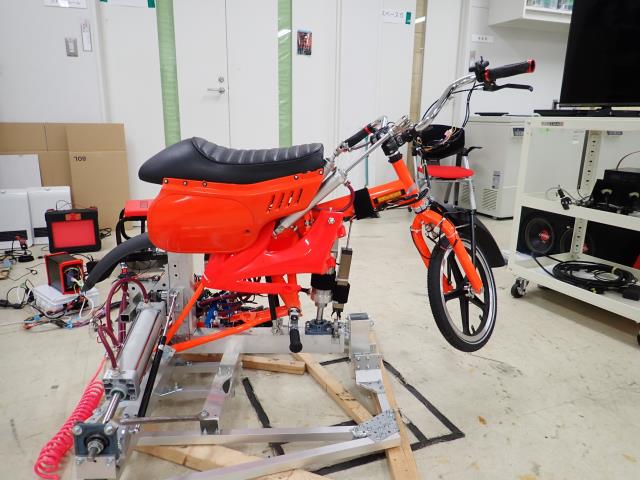

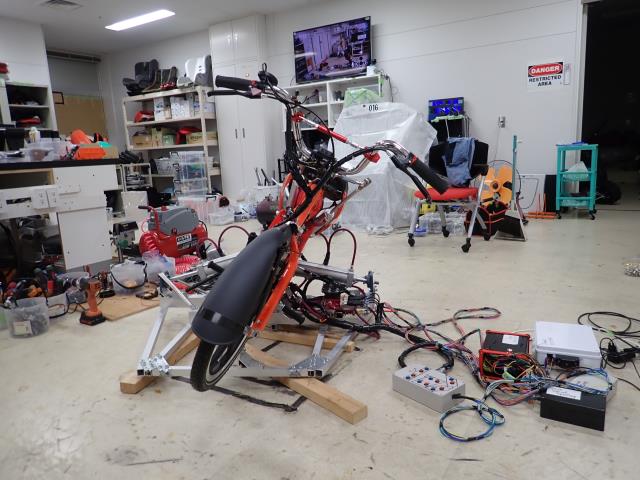

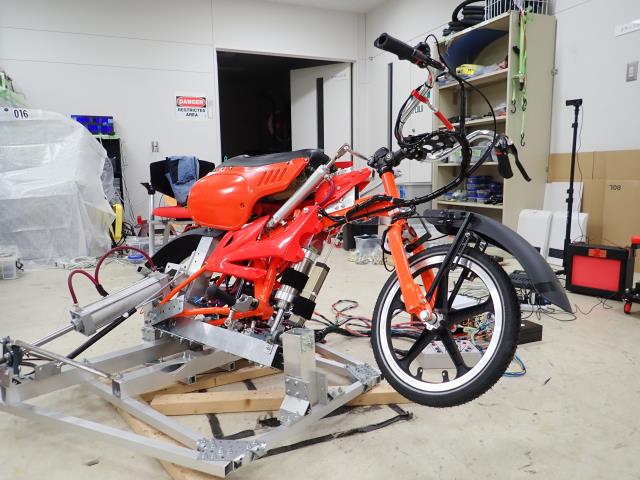

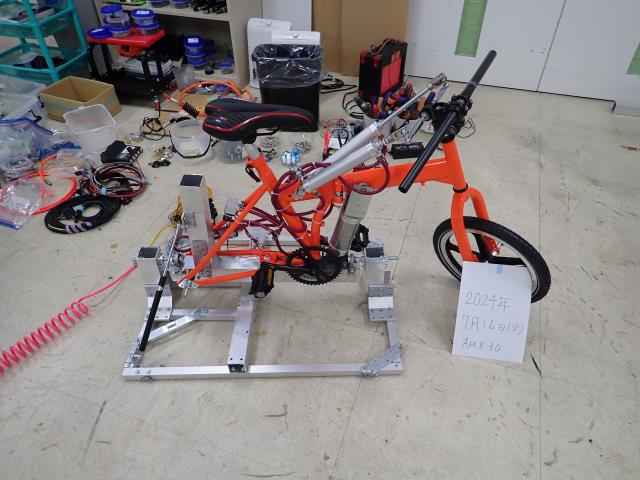

Proto 020, 3axis air-ride bike
proposed by Prof.Satoshi Nishimura
image00 / Jichi Med Univ(JAPAN)

E-mail: If interested (snishi-tky(a-mark)ninus.ocn.ne.jp ) image00

specs:
independent 3axis body control
regulated by dynamic air suspension
adaptive and/or passive control
 3D drawings: details here. image00 Back to top image00
Movie: how it runs image00 Movie: how it runs image00 Movie: how it runs image00 Movie: how it runs image00 Movie: how it runs with sounds image00
how to make, 3axis air-ride bike

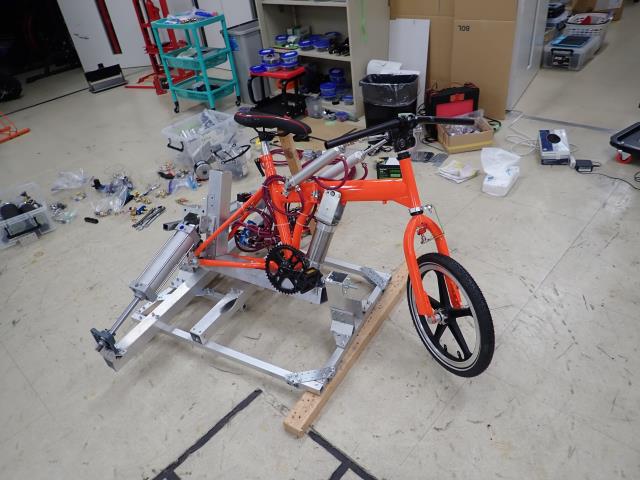

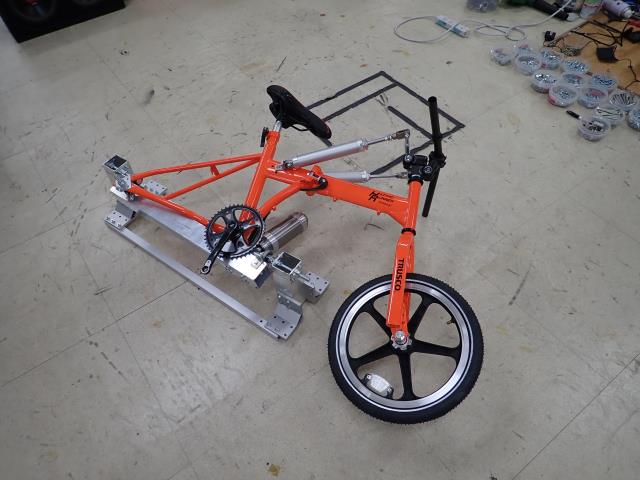

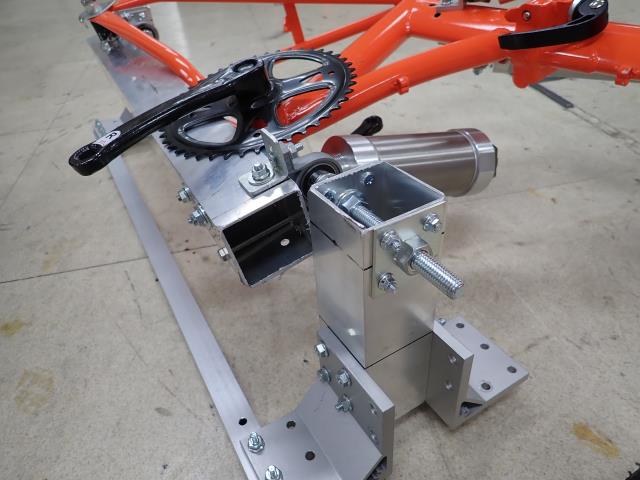

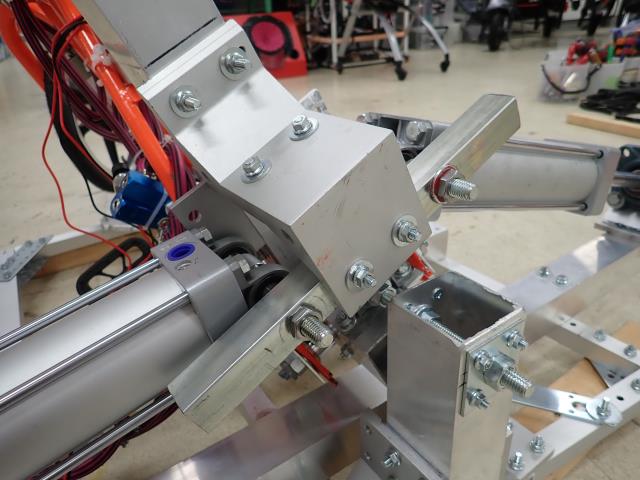

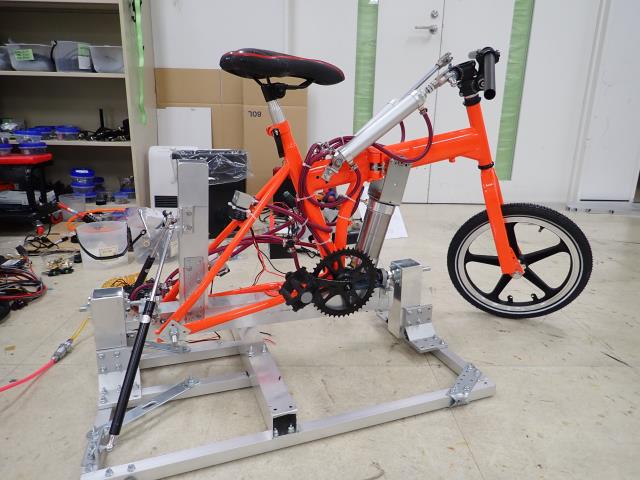

pivot enables 3axis moves

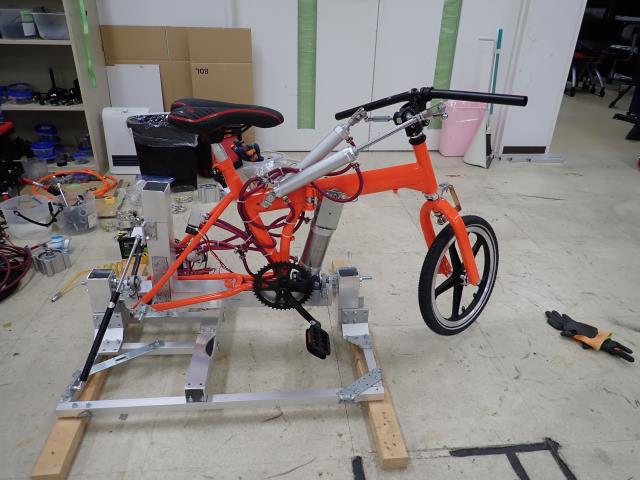

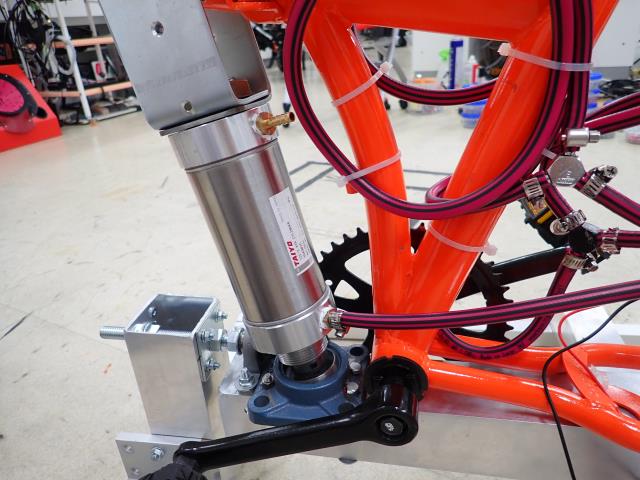

main air suspension

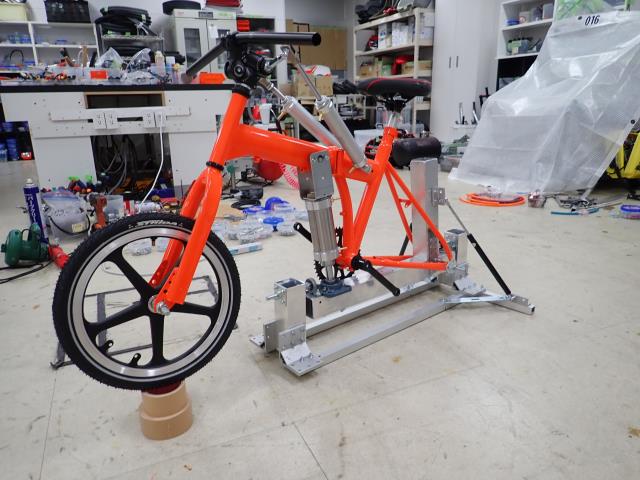

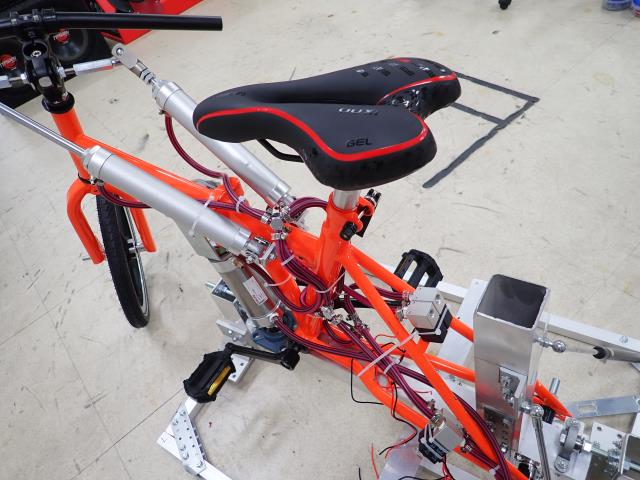

steering suspension


air springs to support leaning position

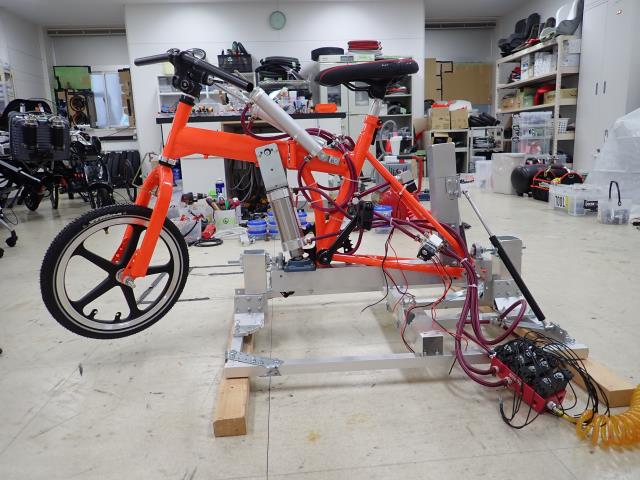

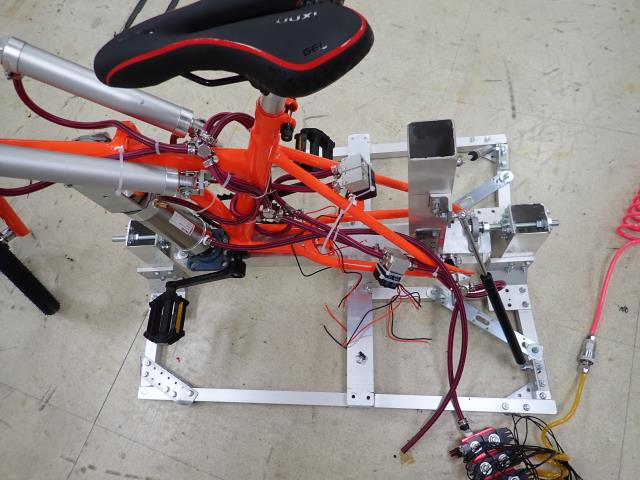

air suspension are controlled by solenoid valves

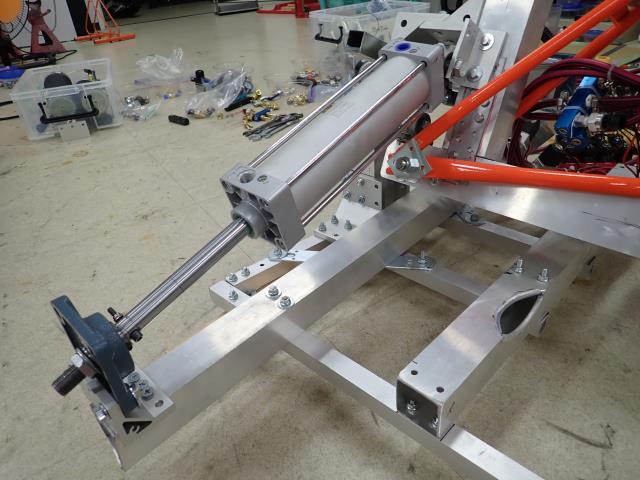

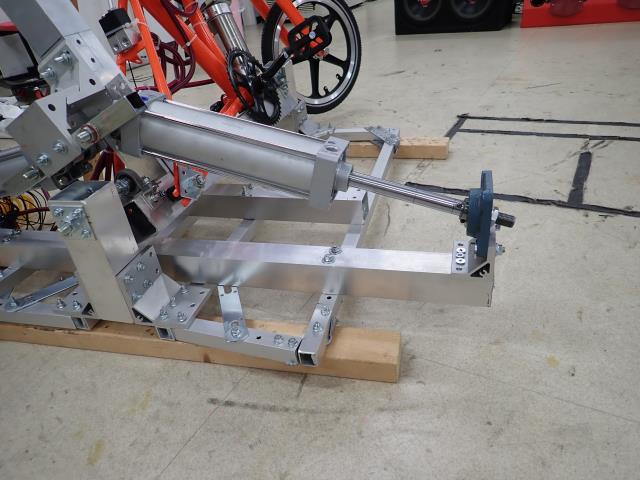

side suspension

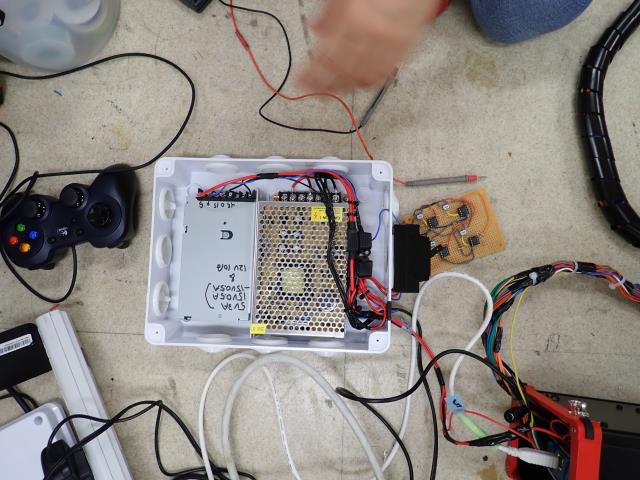

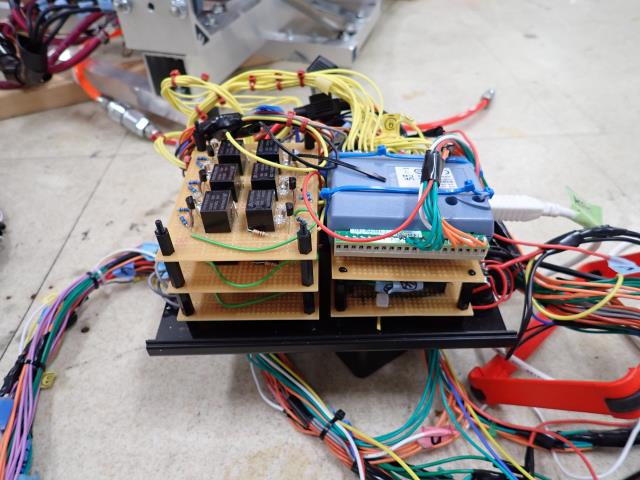

control electronic circuit
for each suspension, air pressure and positions being monitored

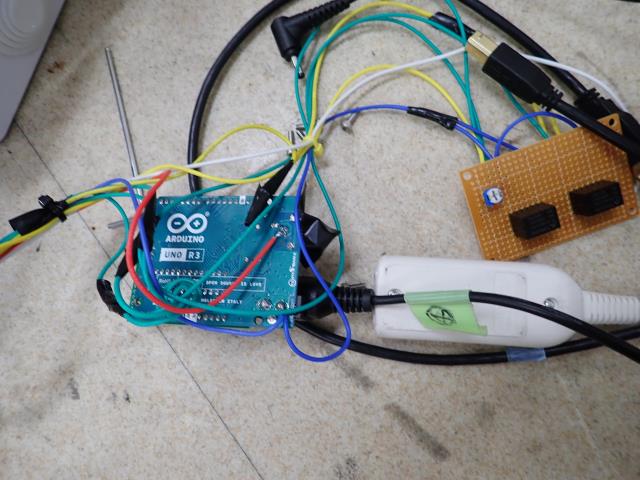

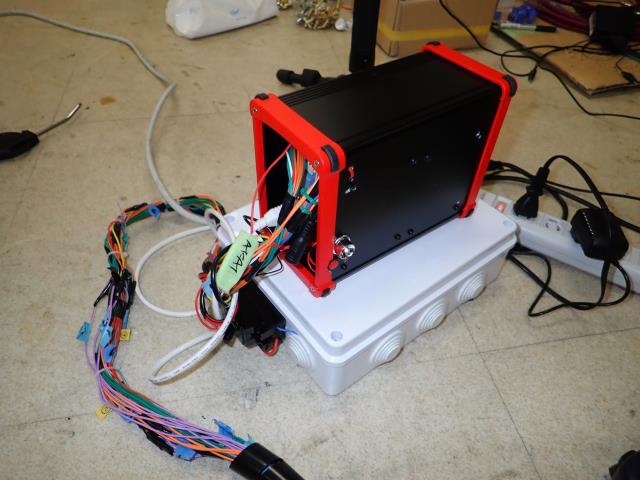

air suspension control unit

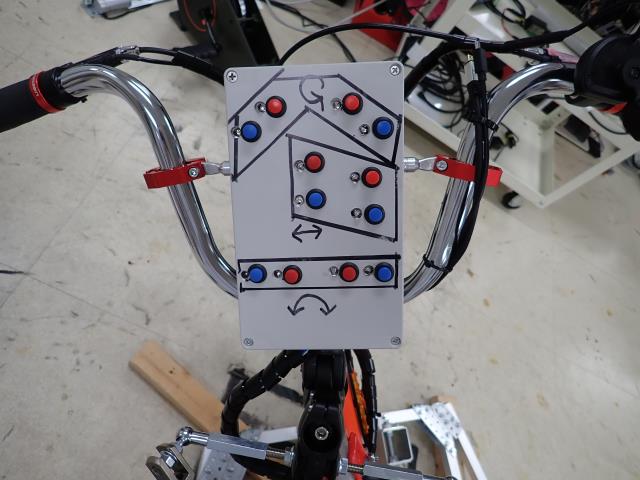

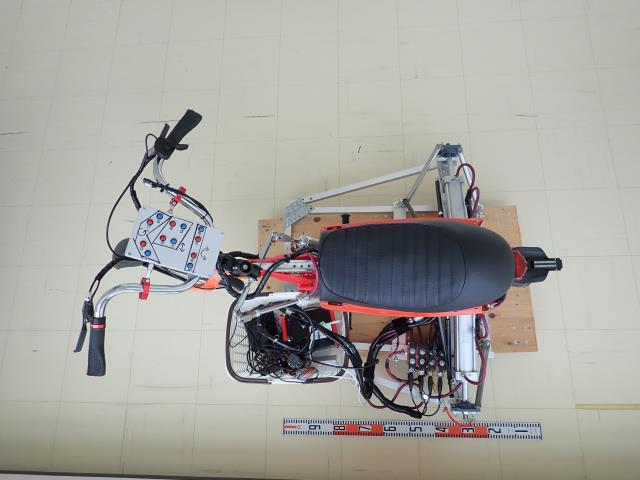

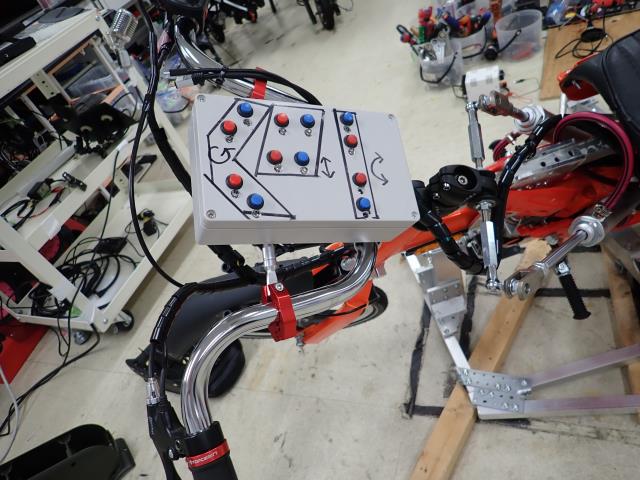

control panel for riders
