selfbuild and re-design desktop PC


buying parts

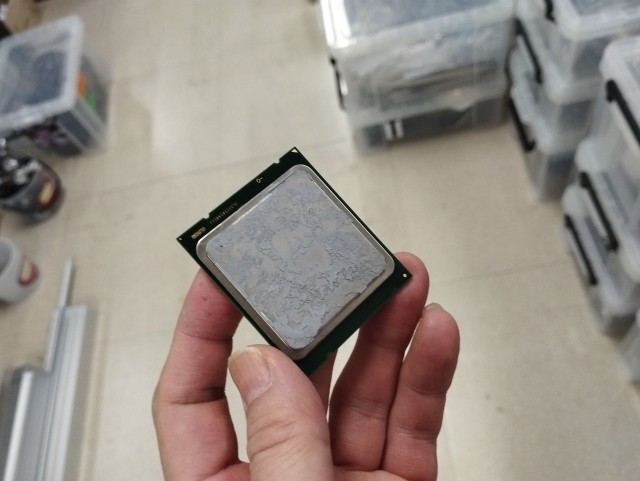

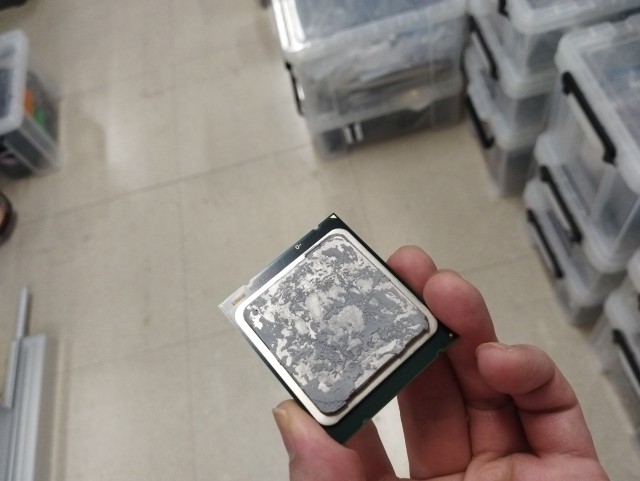

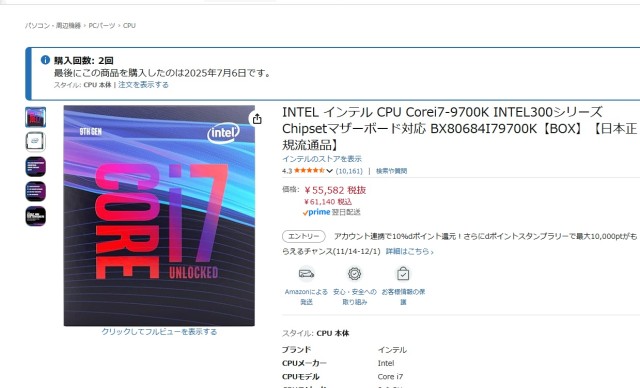

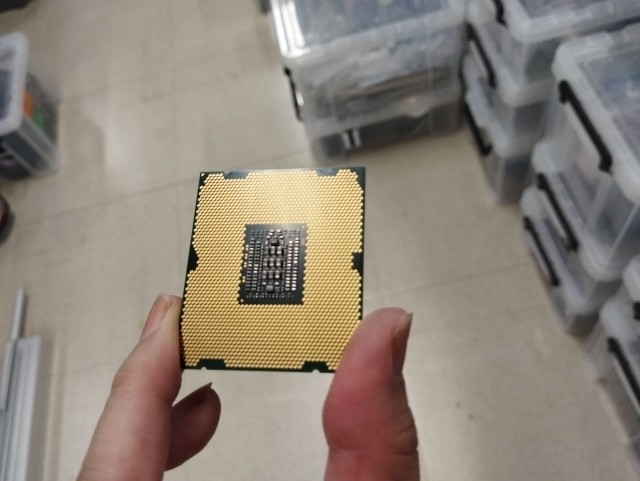

CPU (used i7)

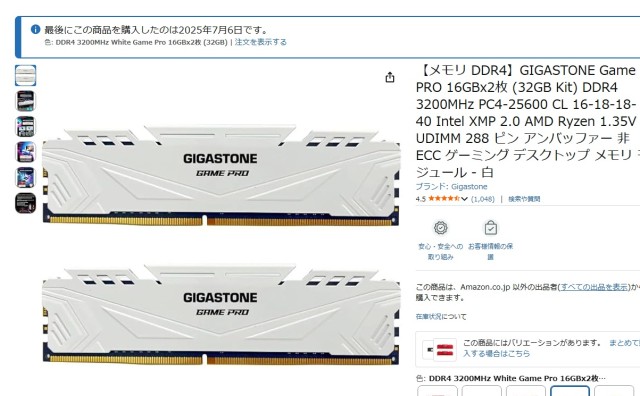

main memory

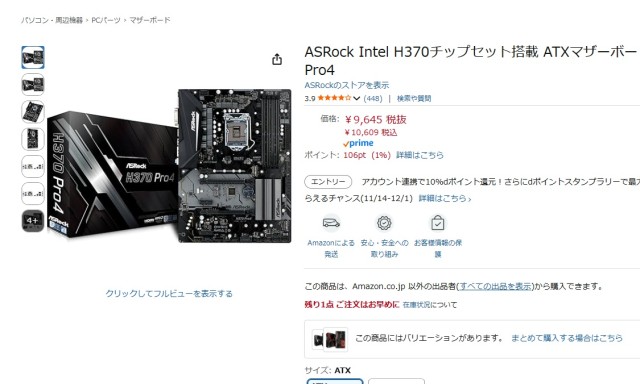

motherboard (compatible for win11, PSM2)

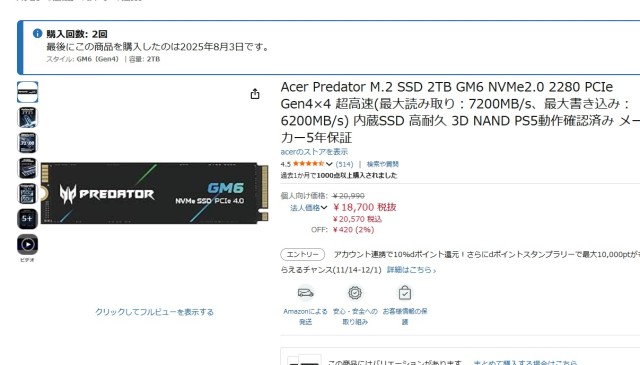

SSD storage

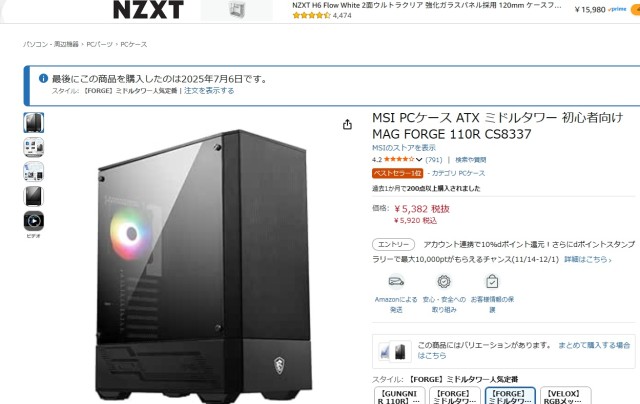

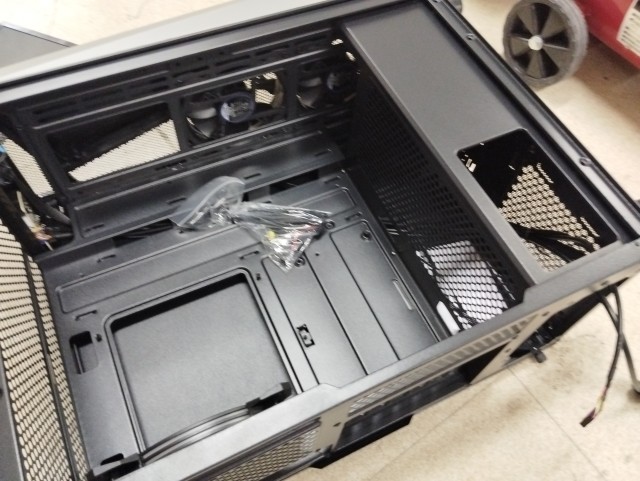

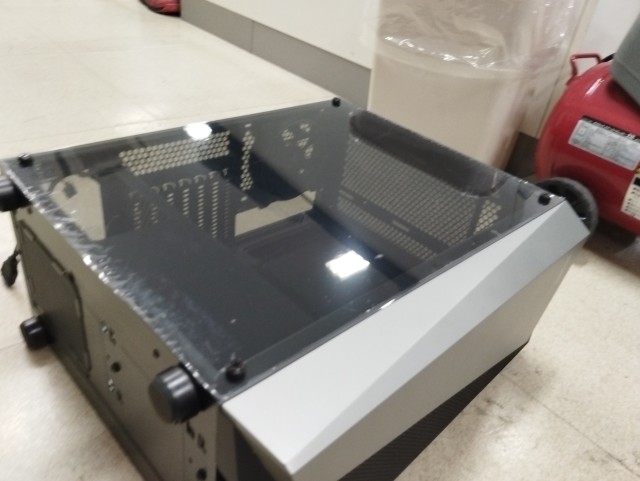

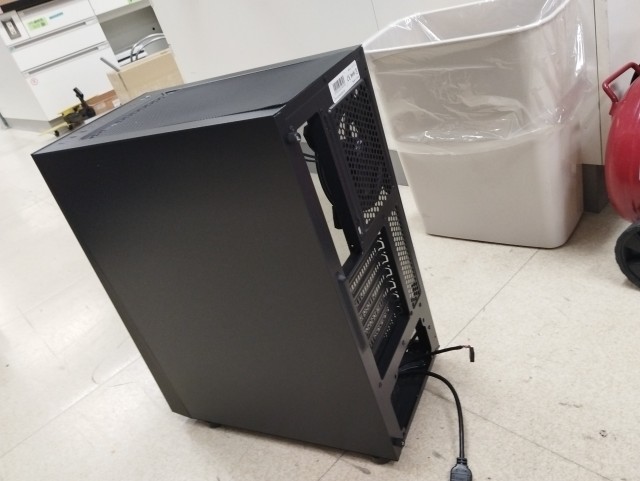

PC case (middle ATX)

setup

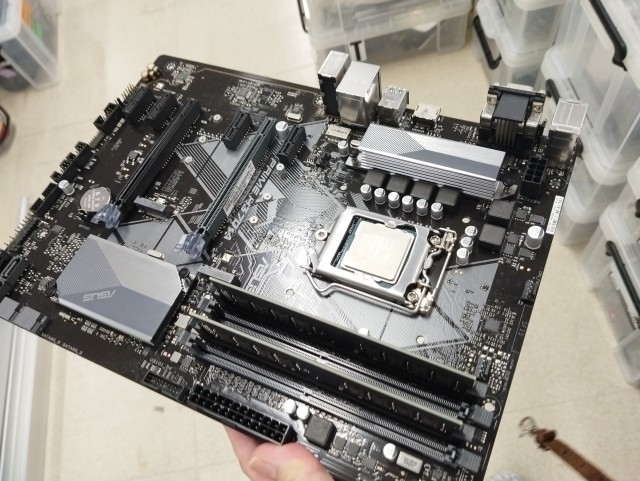

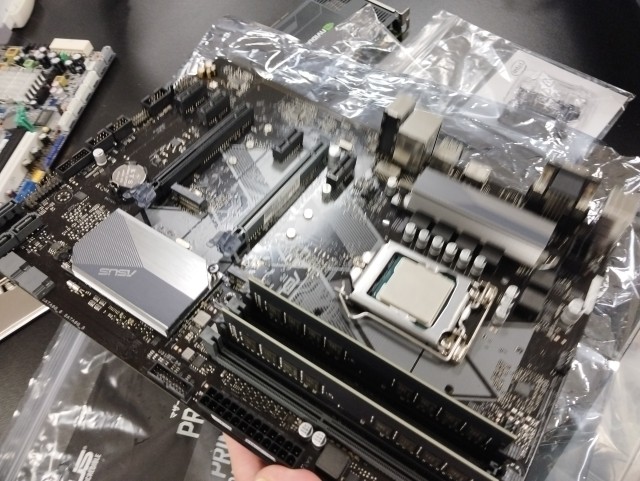

using PC thermal paste, CPU is fixed onto board

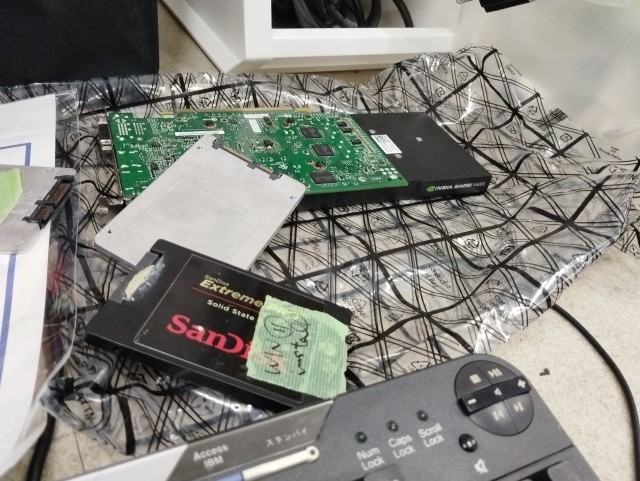

from my parts stock..

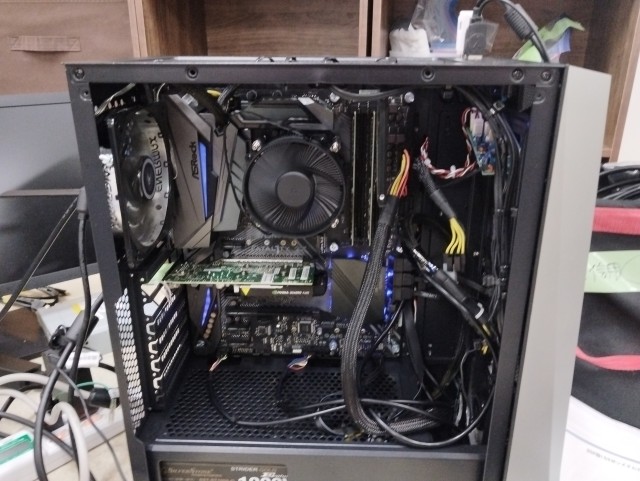

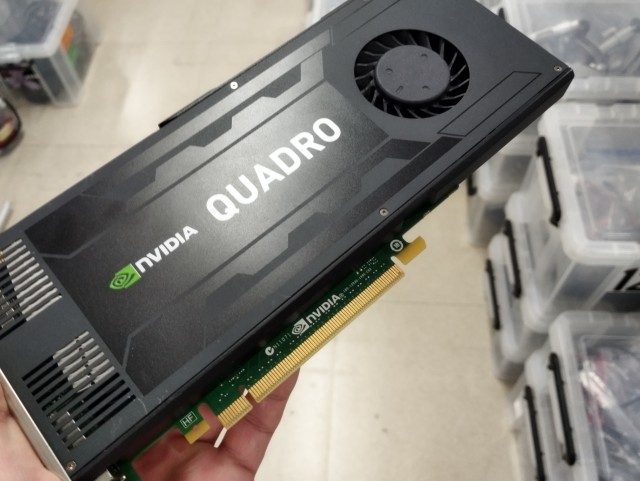

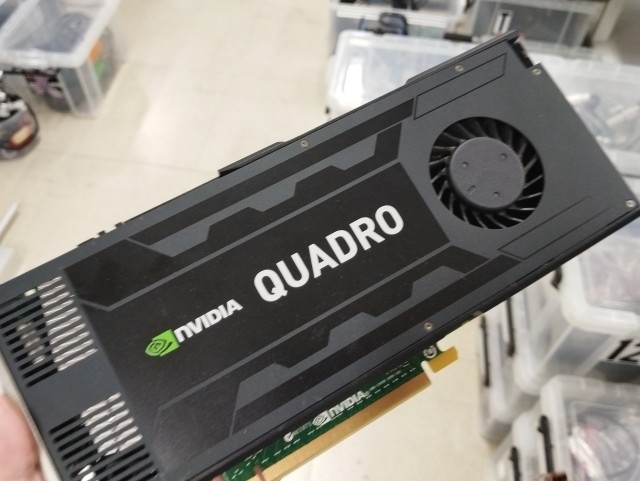

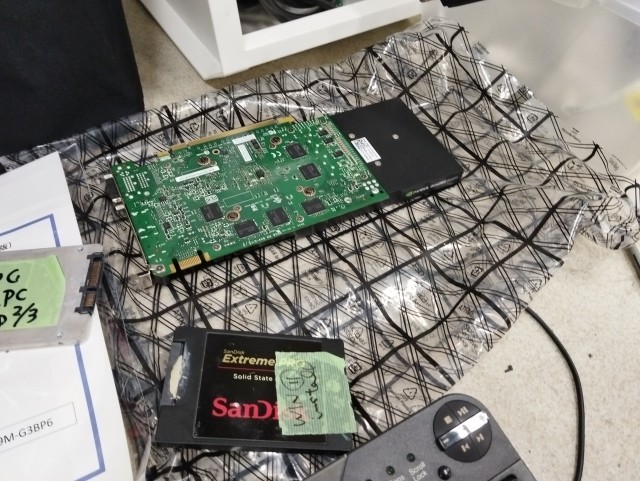

check compatibility for GPU boards and memory

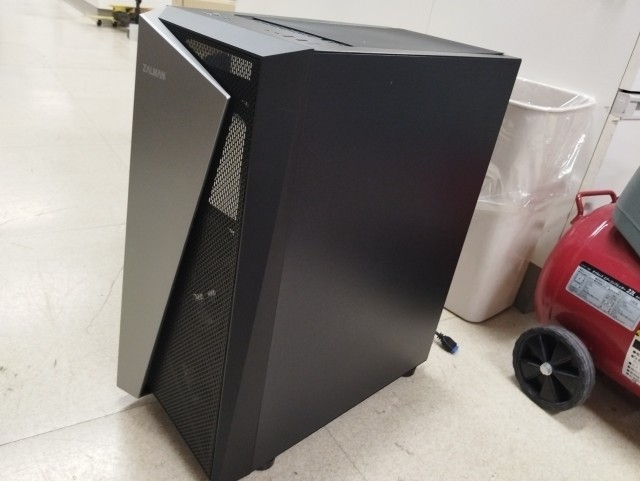

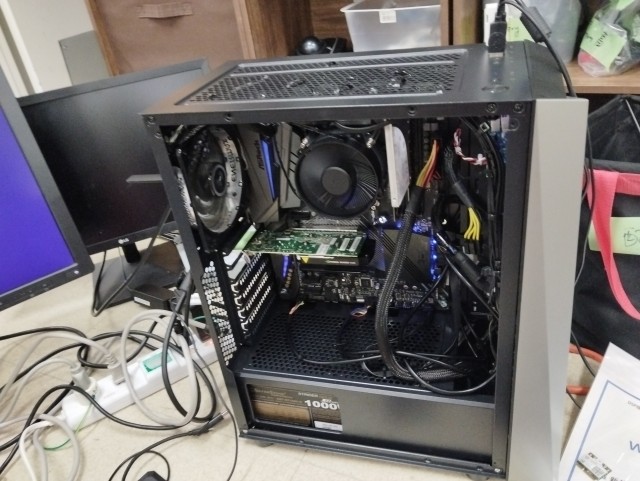

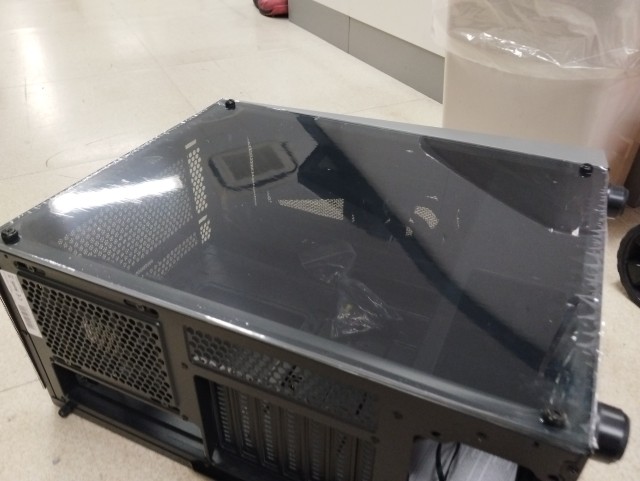

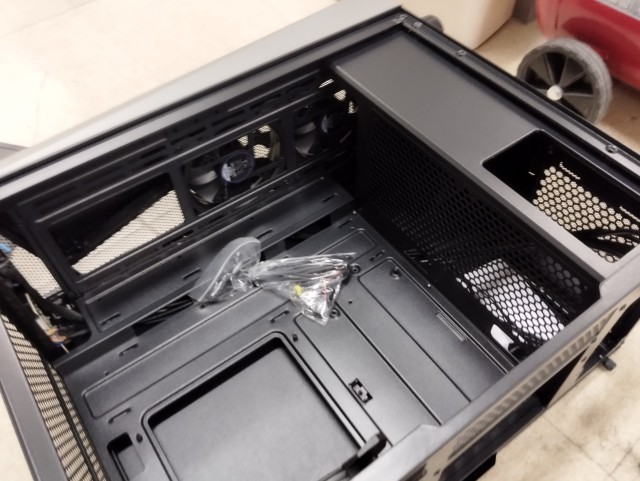

PC case

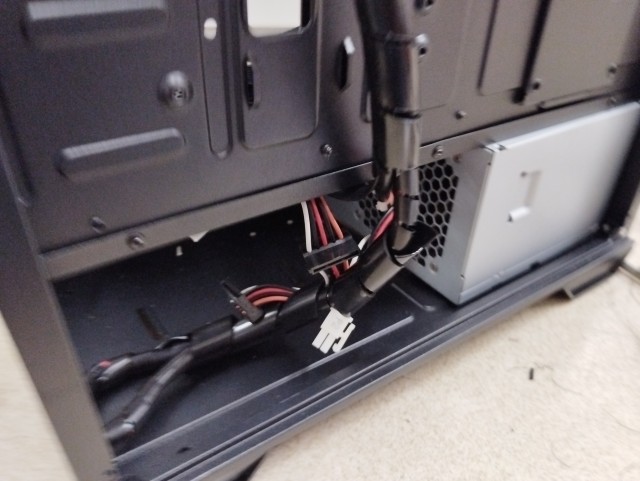

fixed AC/DC source

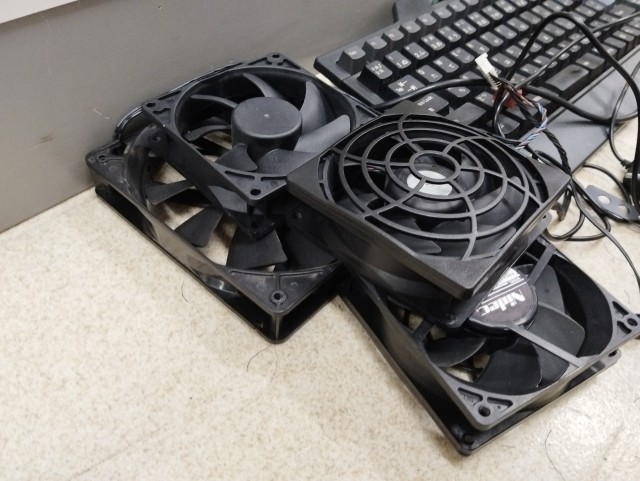

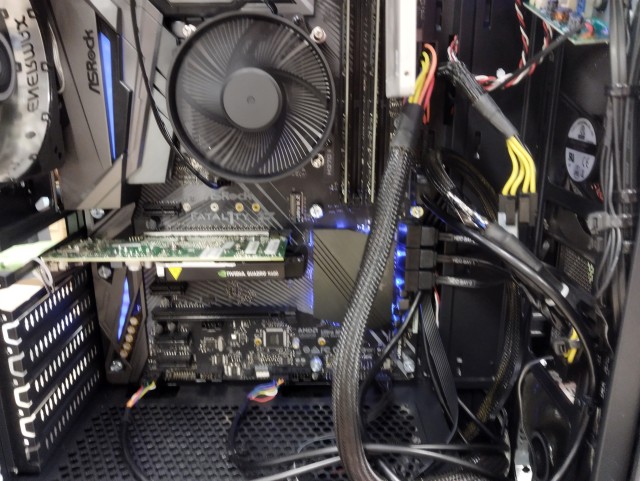

setup FANs etc.

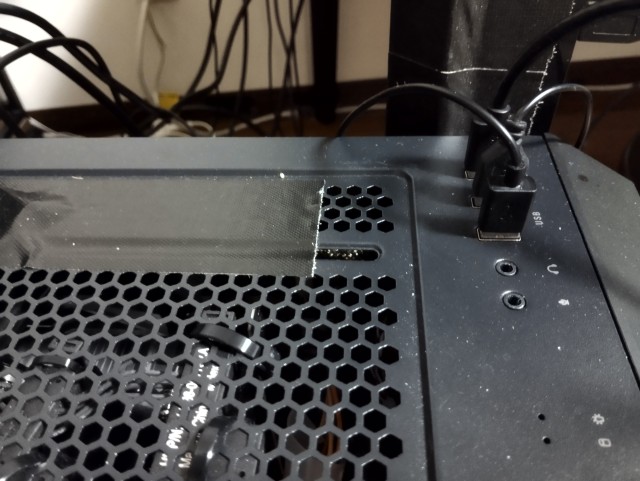

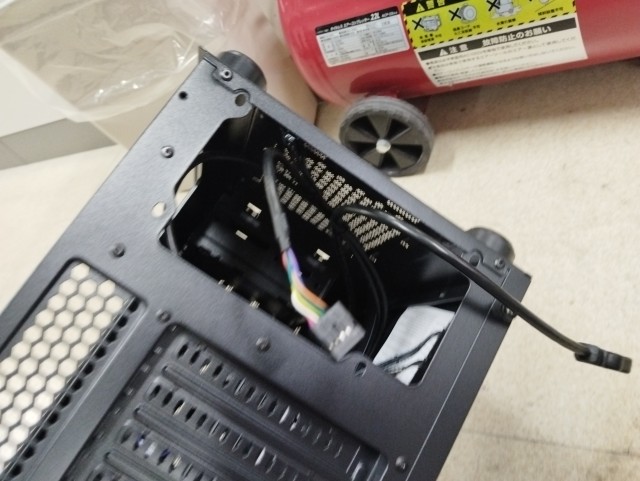

USB exit is added,, and some small modifications more..

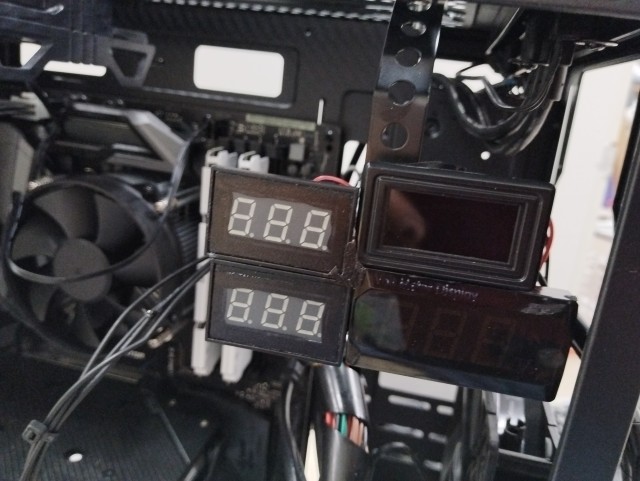

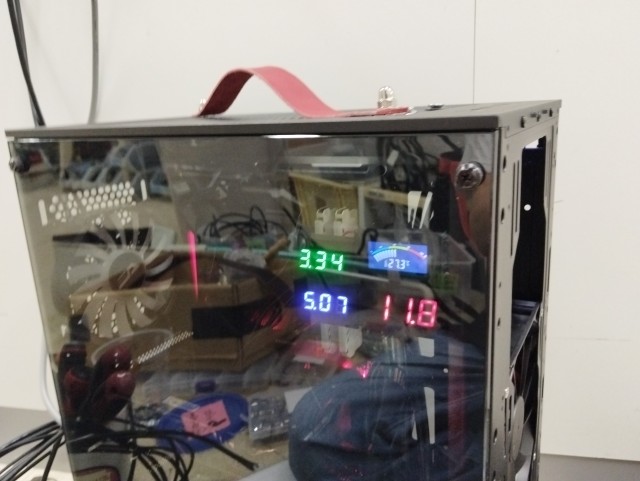

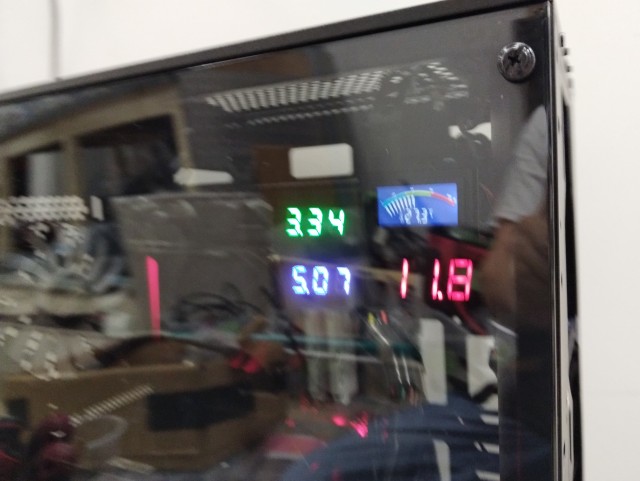

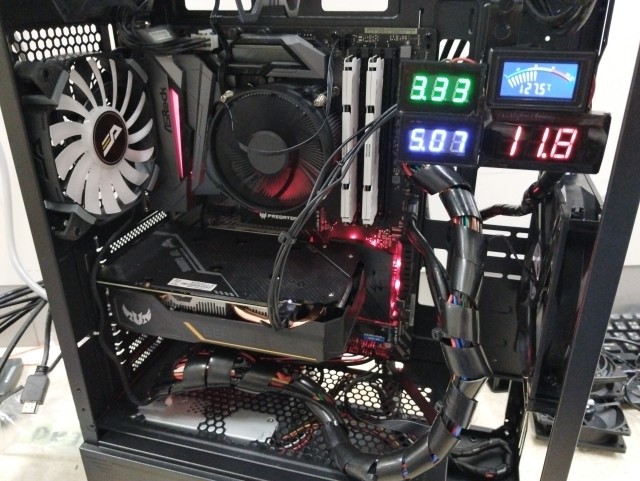

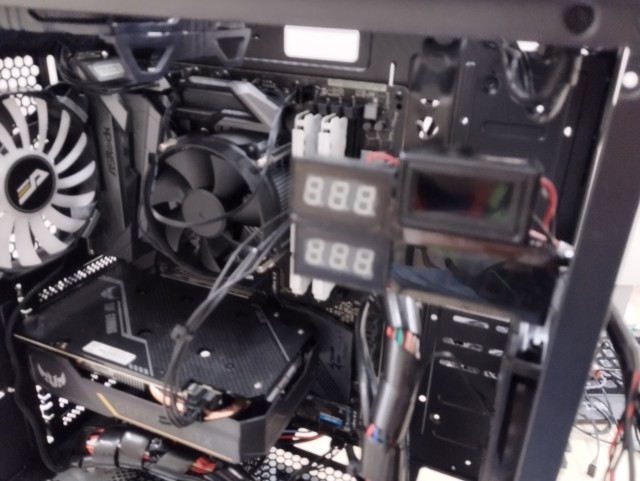

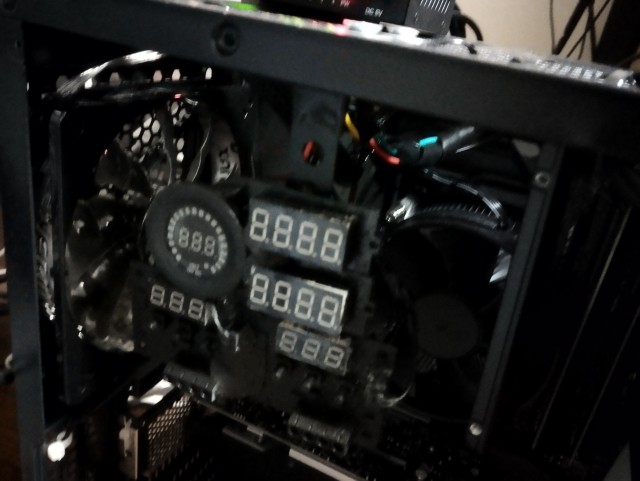

DC monitor for 12, 5, 3.3V, each
thermal monitor for nearCPU, inside..

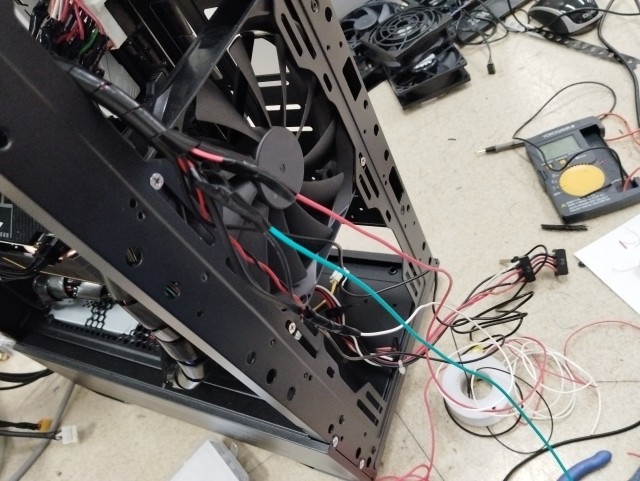

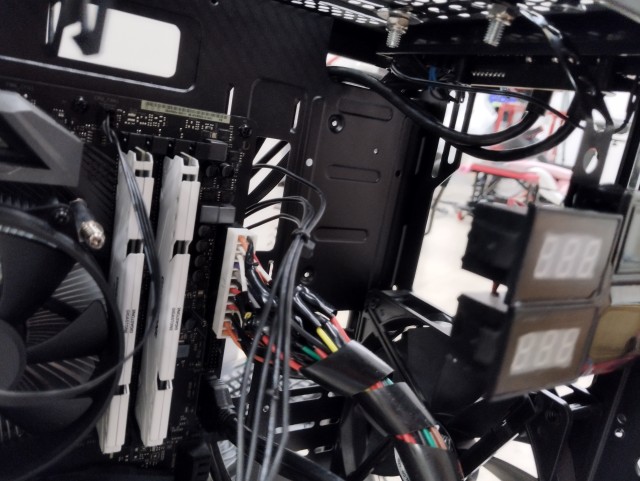

sensor and wirings

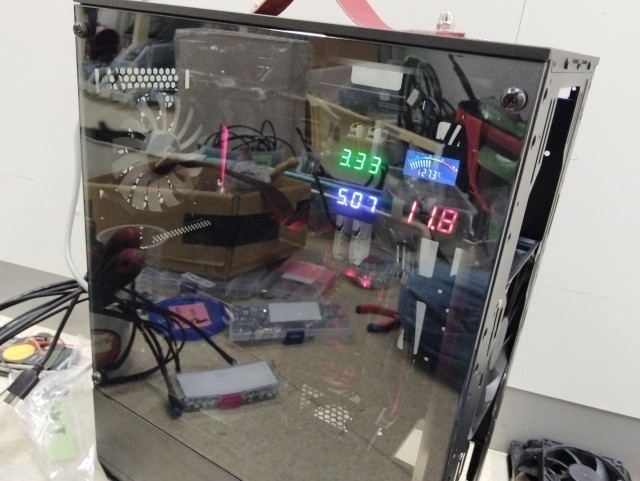

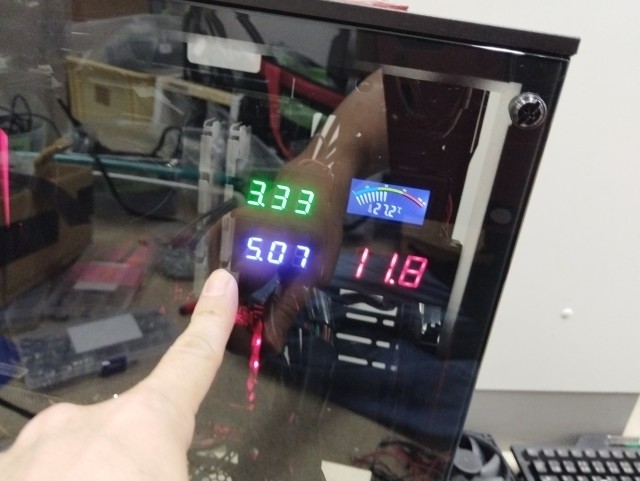

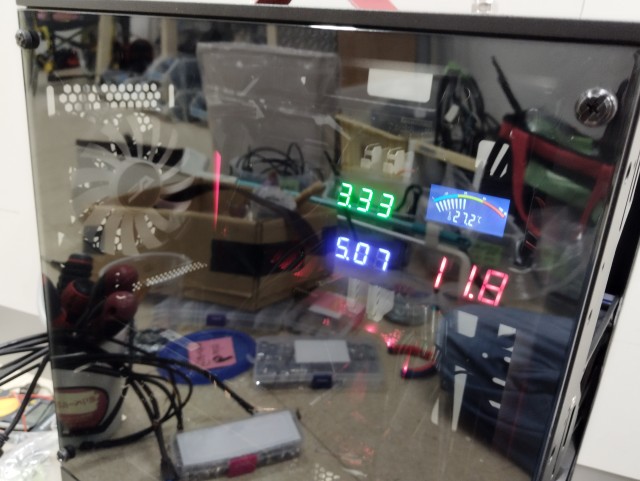

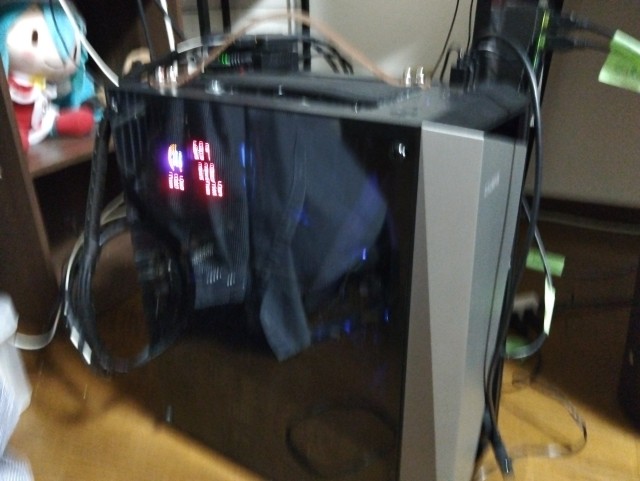

now, thermal and volatages status, visualized
useful for extreme calculations (development, science, etc.)

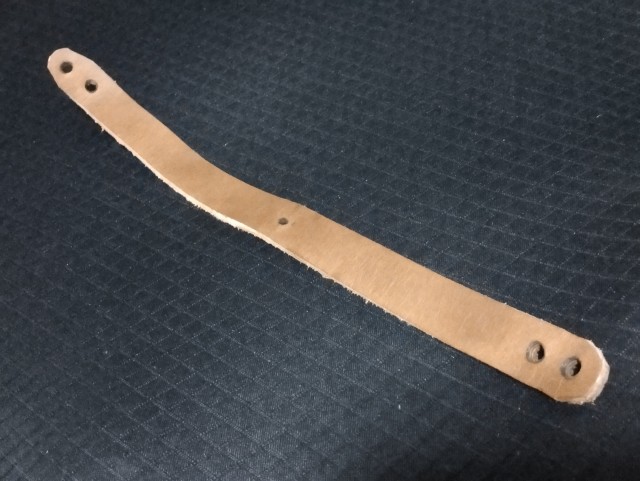

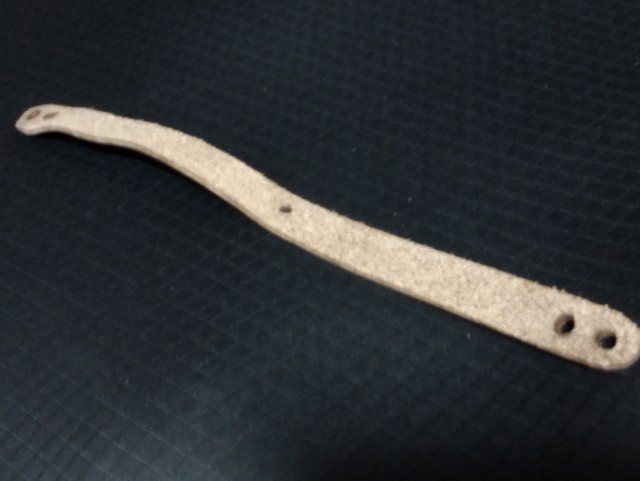

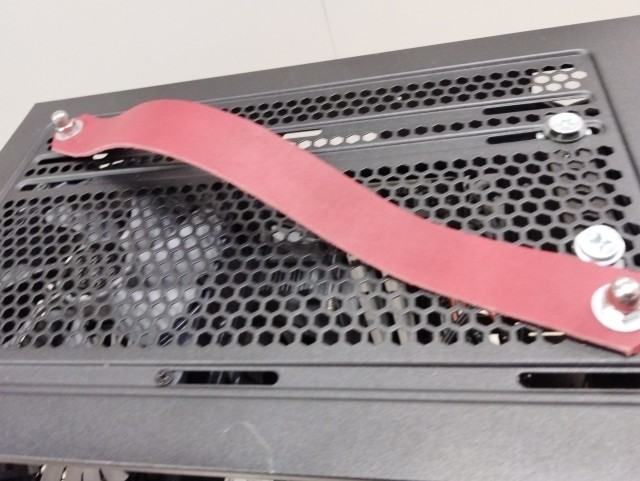

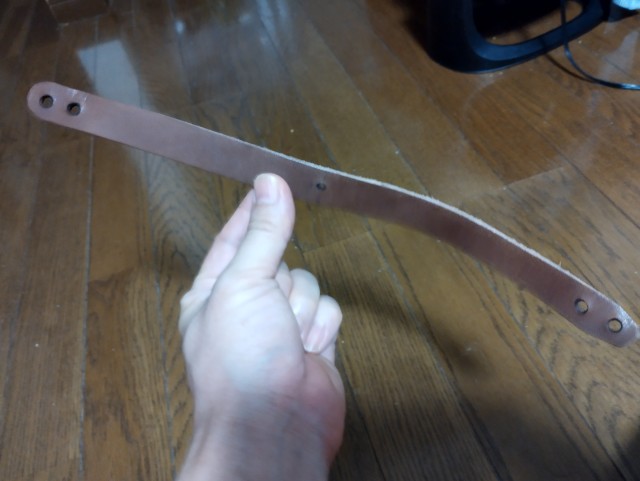

leather

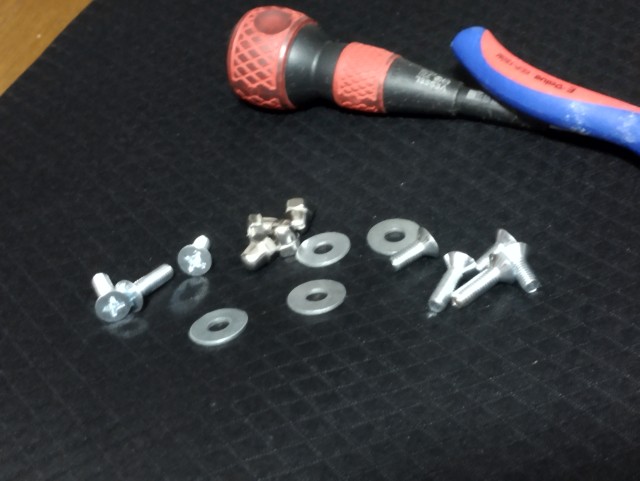

screws

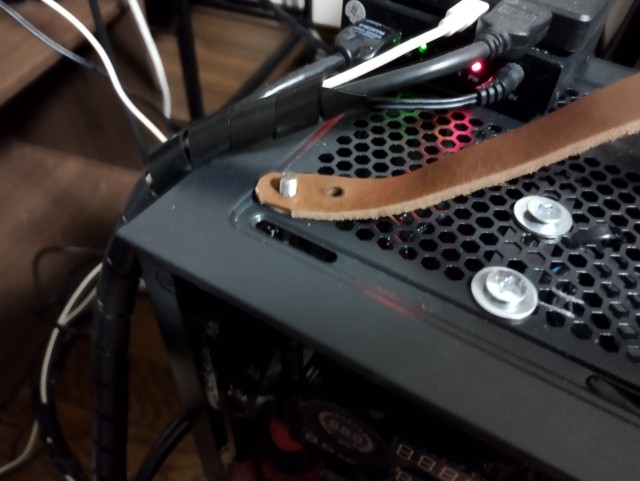

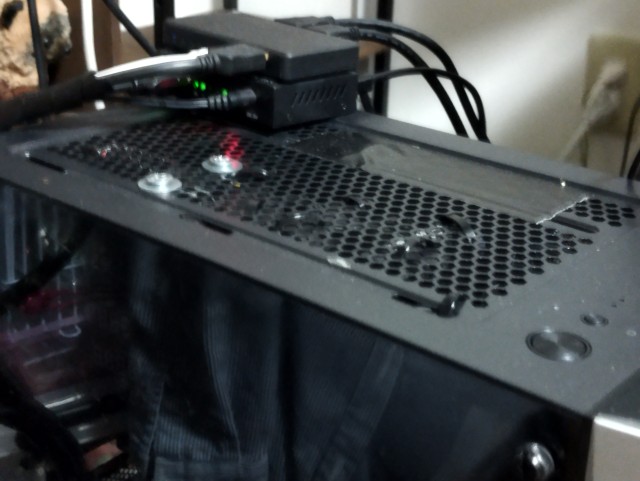

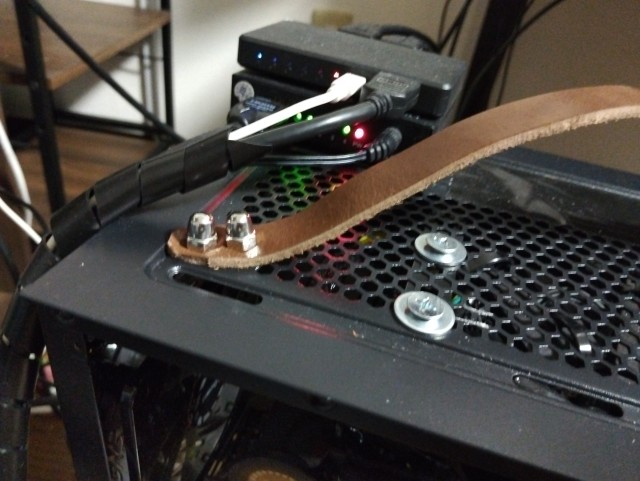

fixed to the PC case

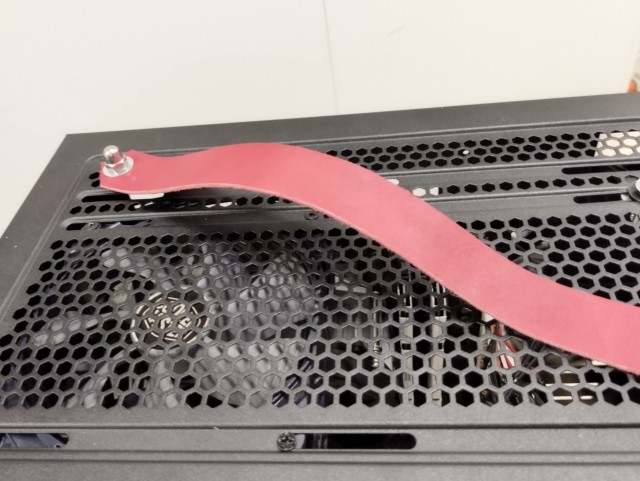

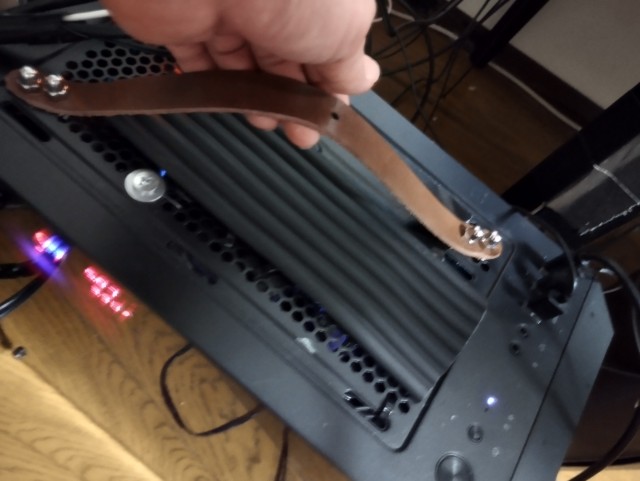

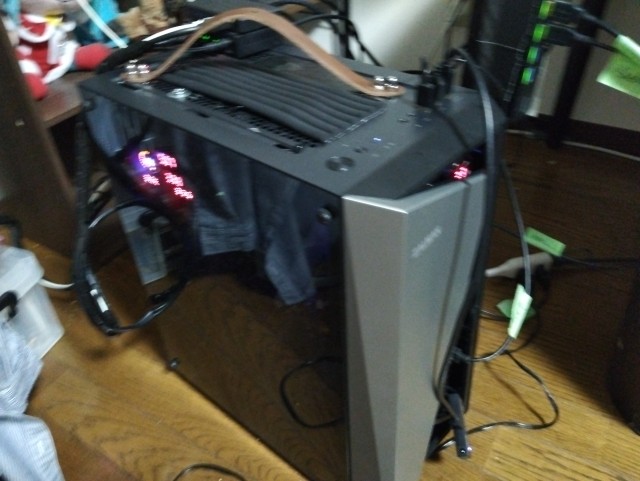

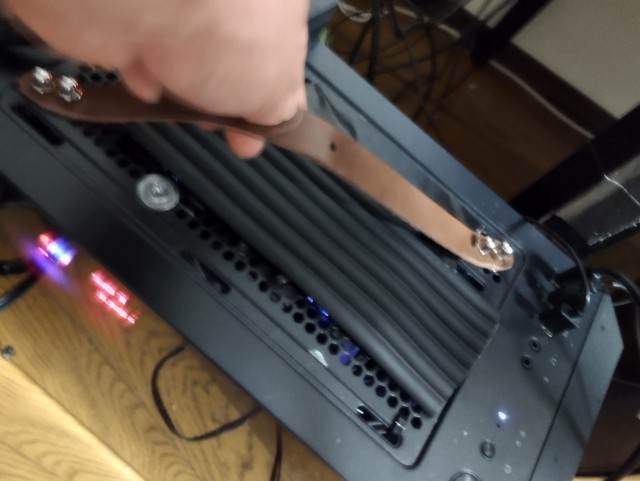

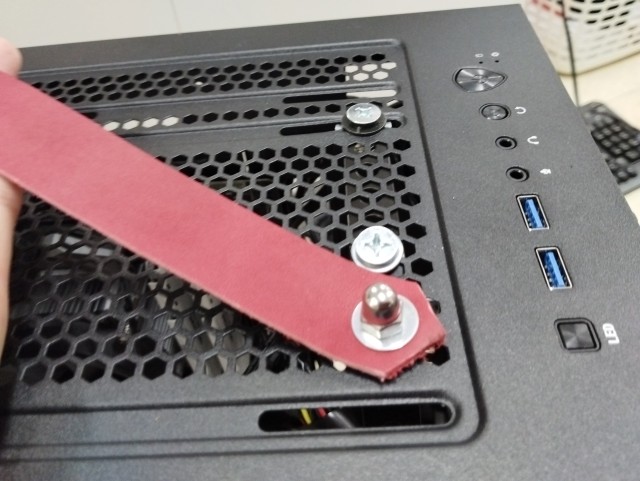

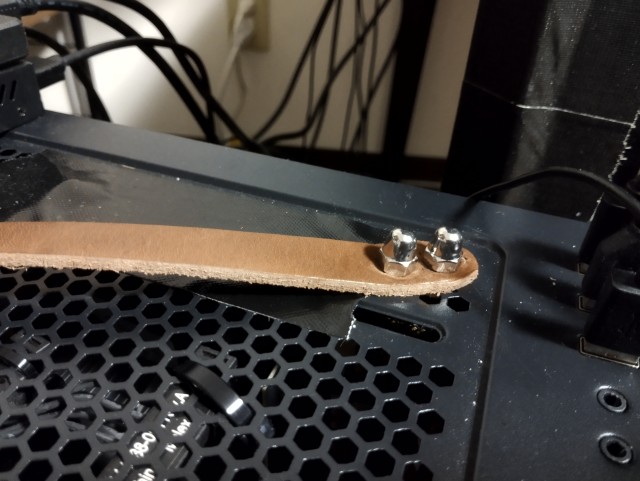

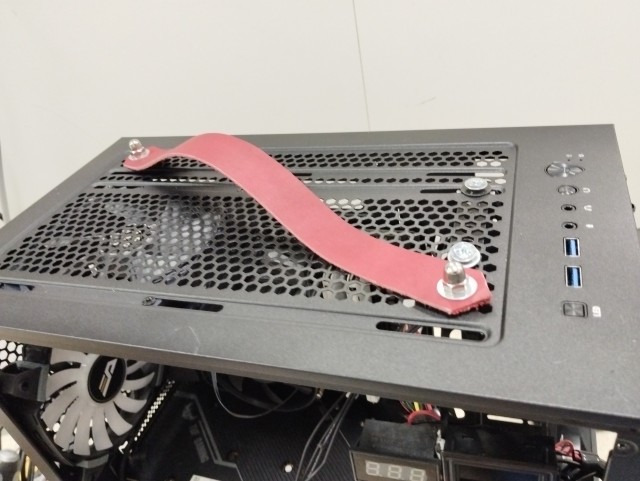

leather strap (for demo usage)

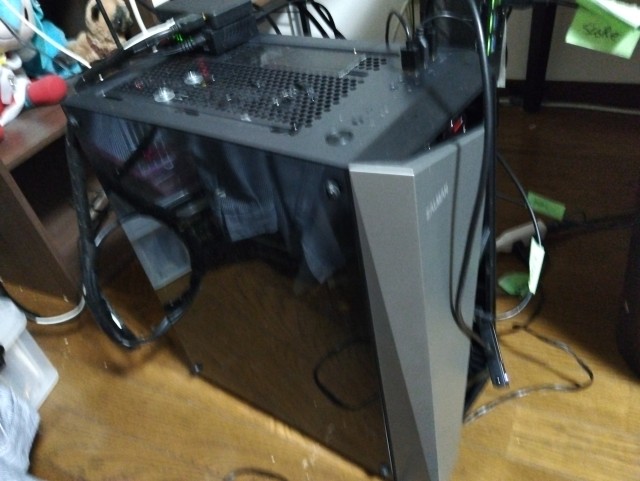

another example

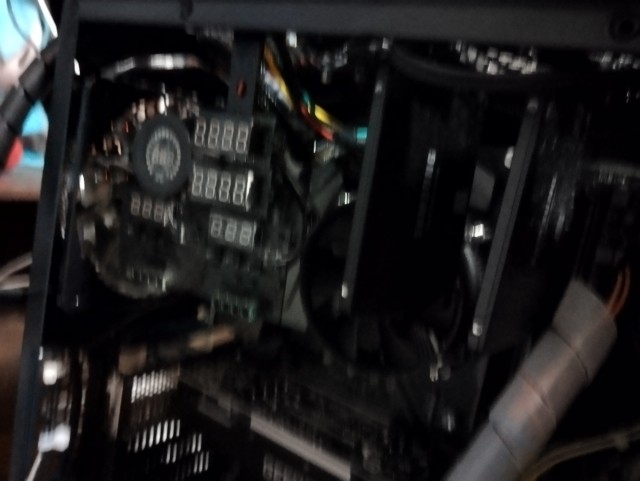

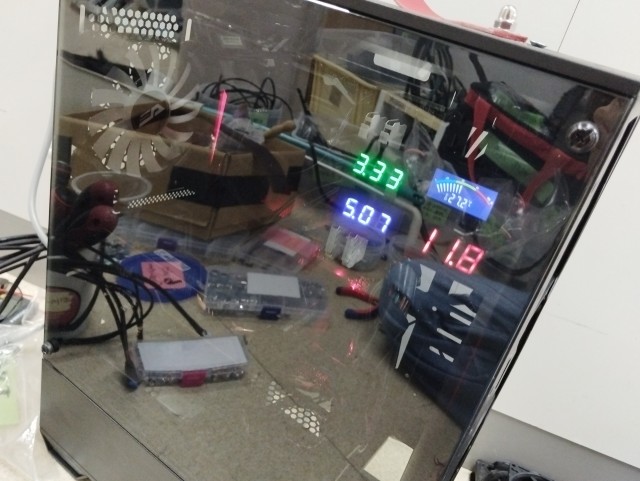

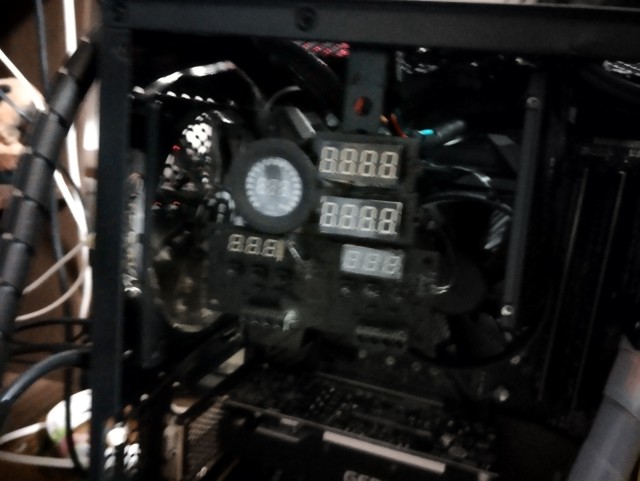

voltage and temp monitor

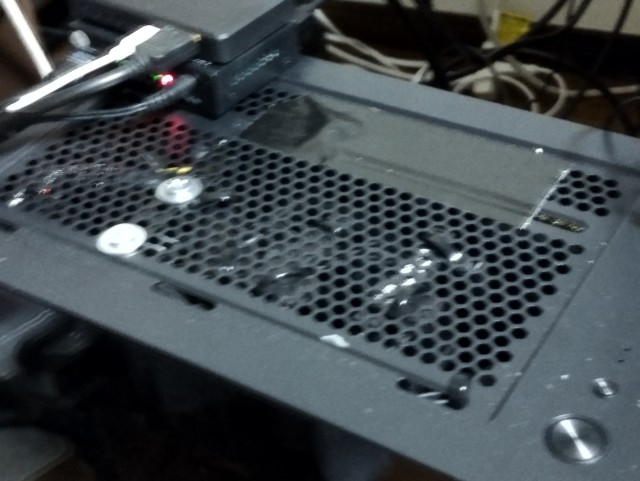

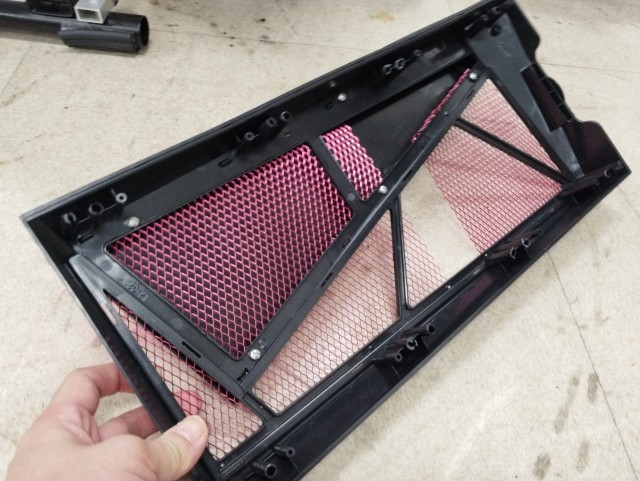

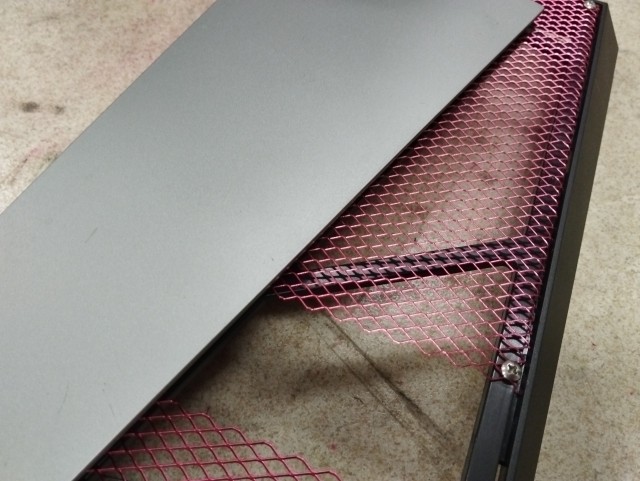

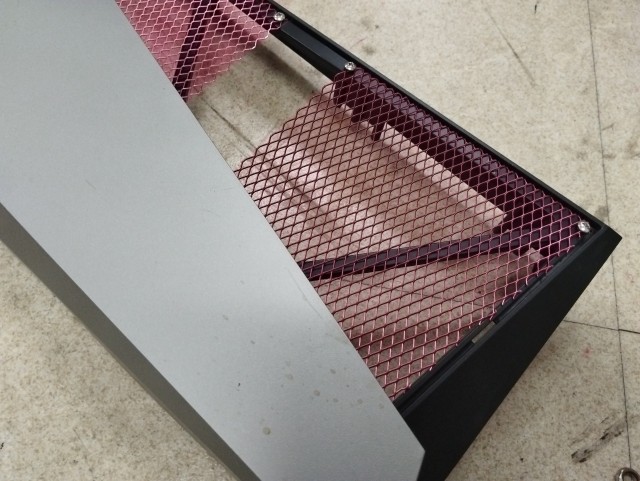

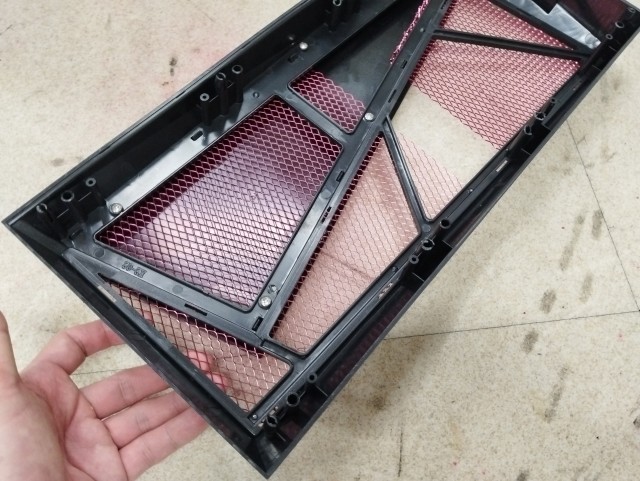

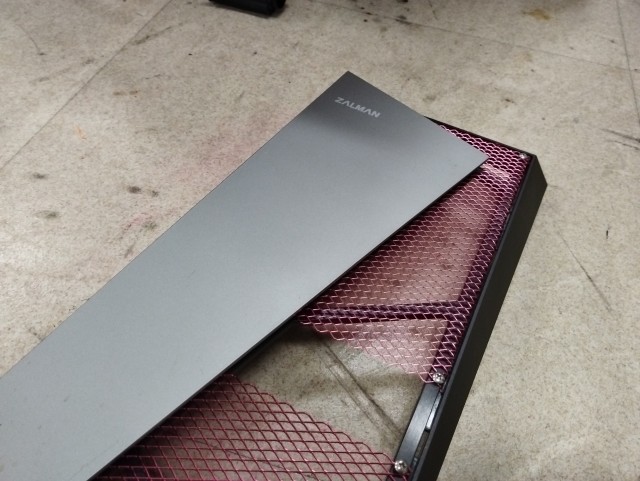

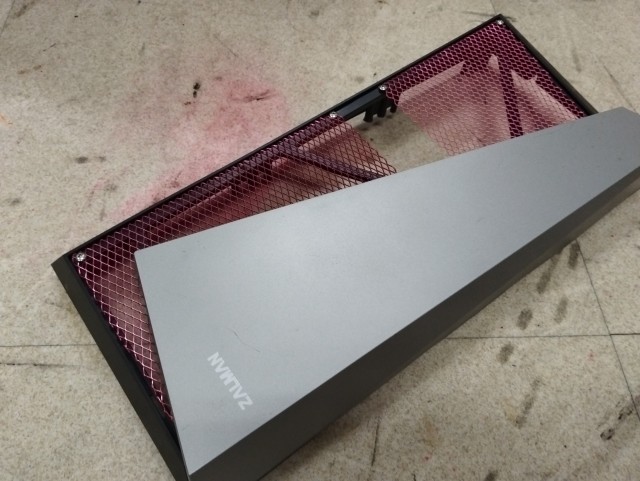

shell is modified for better cooling


again, these modifications are to be fit for extreme calculations, outside usage, ..
