design moving mechanisms with 3d print
proposed by Prof.Satoshi Nishimura image00 / Jichi Med Univ(JAPAN)

E-mail: (snishi-tky(a-mark)ninus.ocn.ne.jp ) 　URL: (www.satoshi-celica.com ) image00
Back to top image00

how to design "moving mecha" for 3d-printed parts

Movie: play MP4 image00


design by powerpoint & drawing software

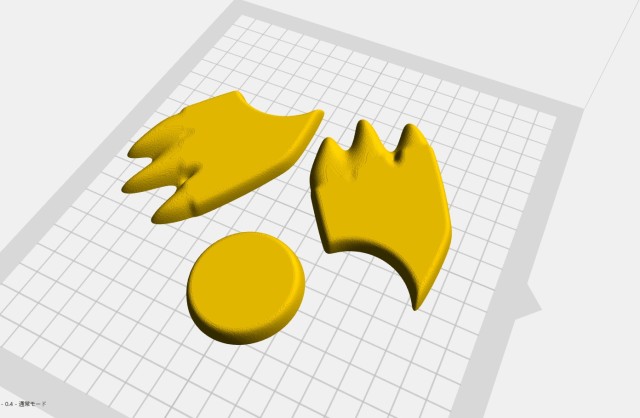

imported into slicer soft


printed by PET
PET is used for "outdoor usage", not PLA

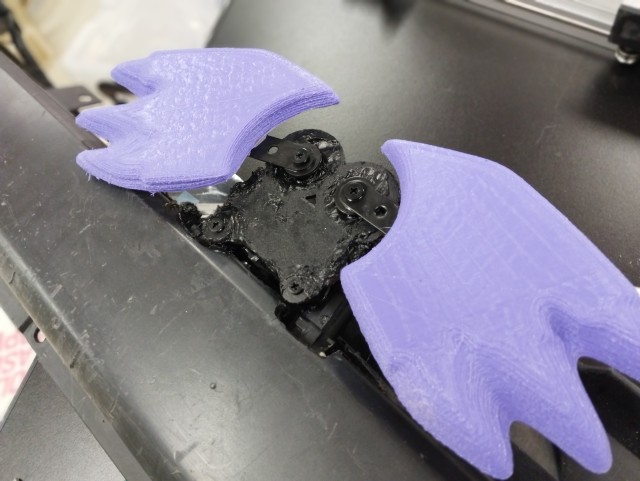

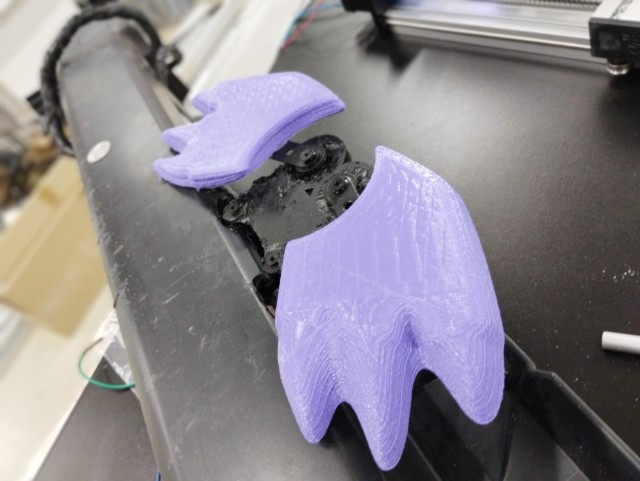

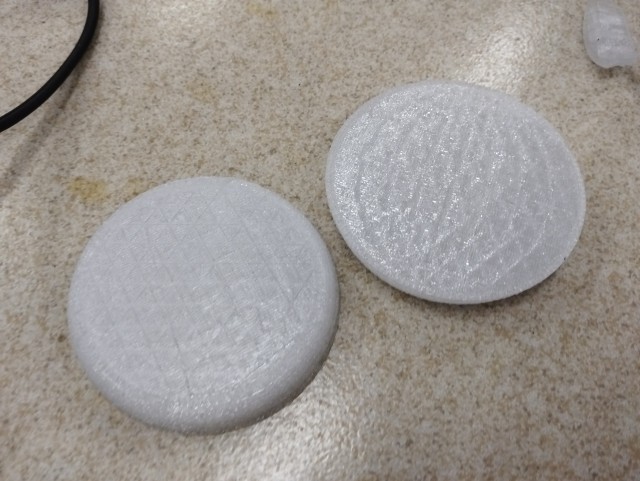

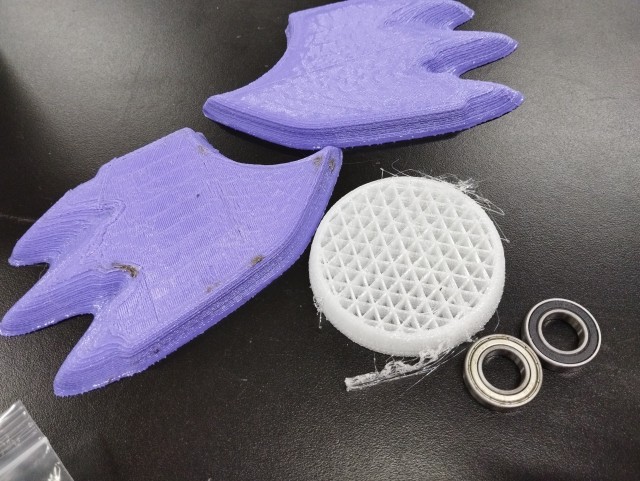

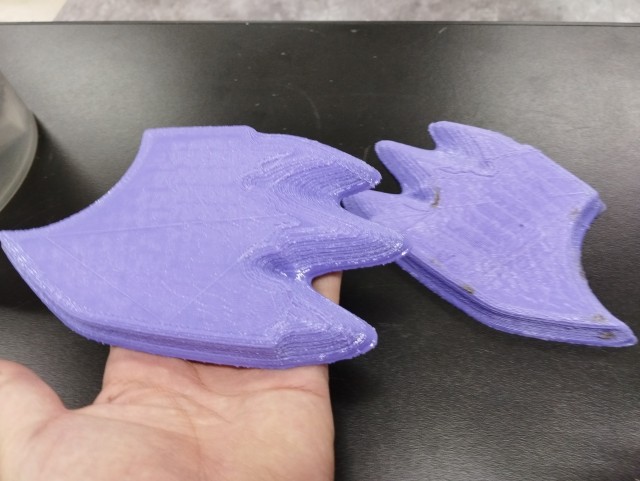

purple and clear color

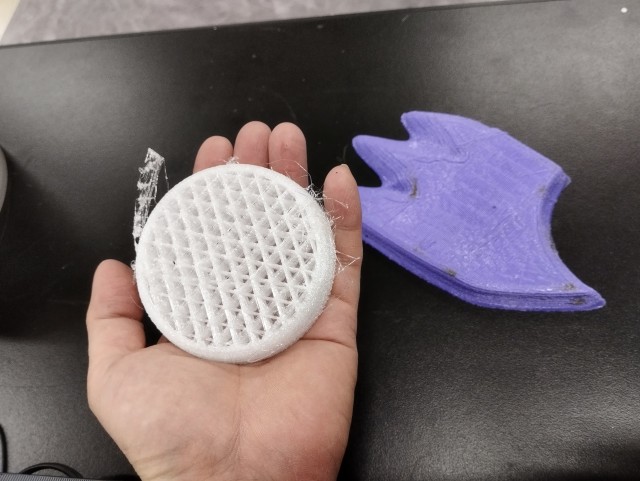

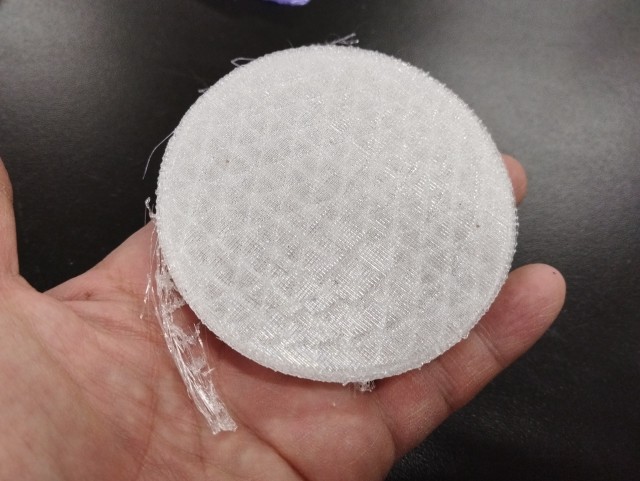

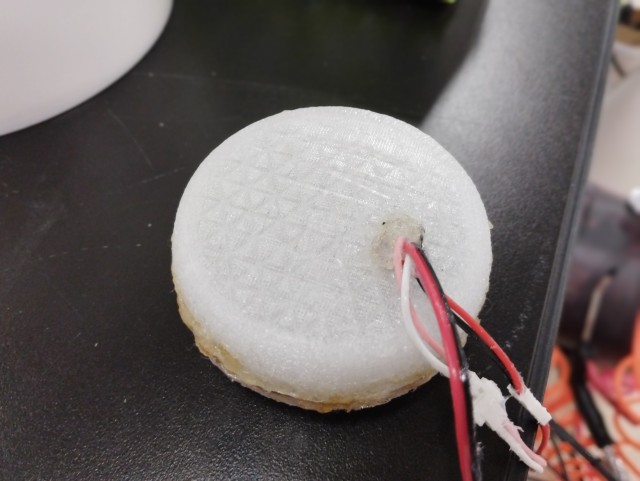

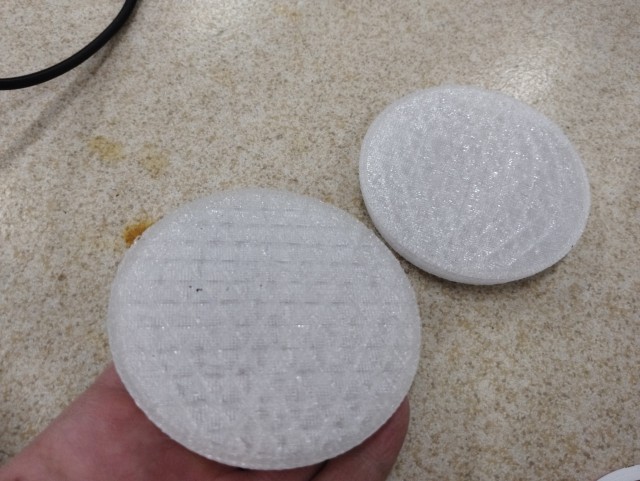

clear parts, used for light scattering & transparency

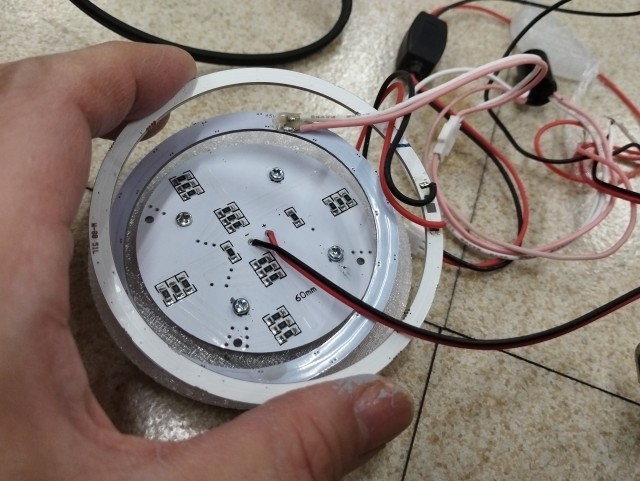

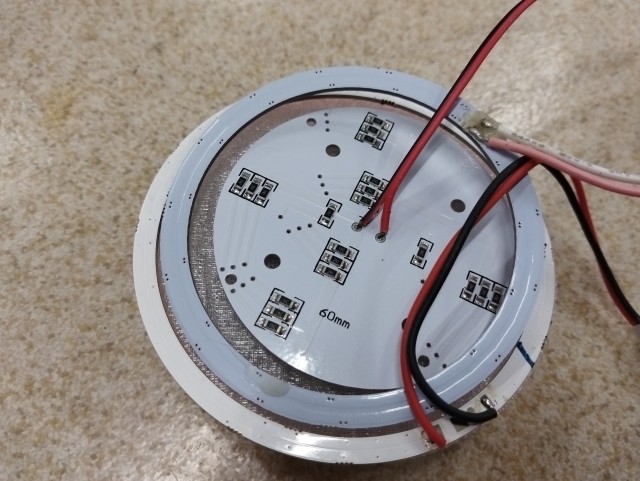

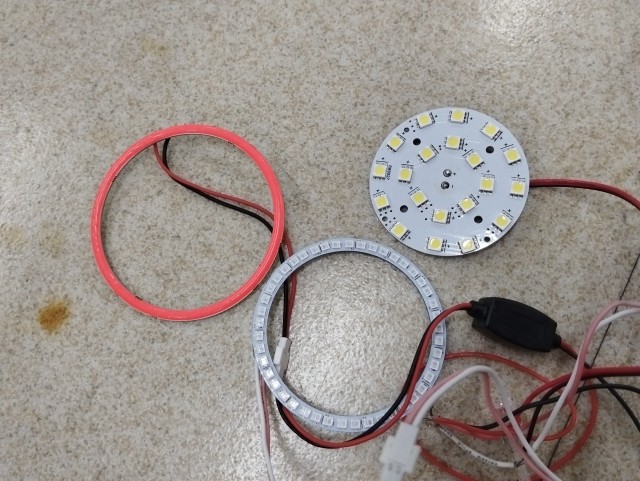

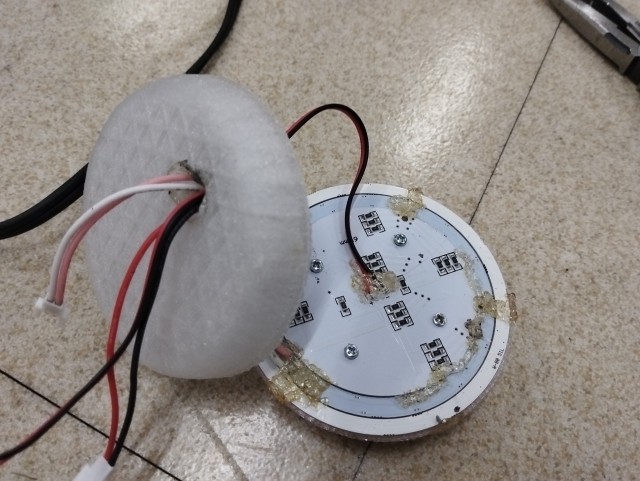

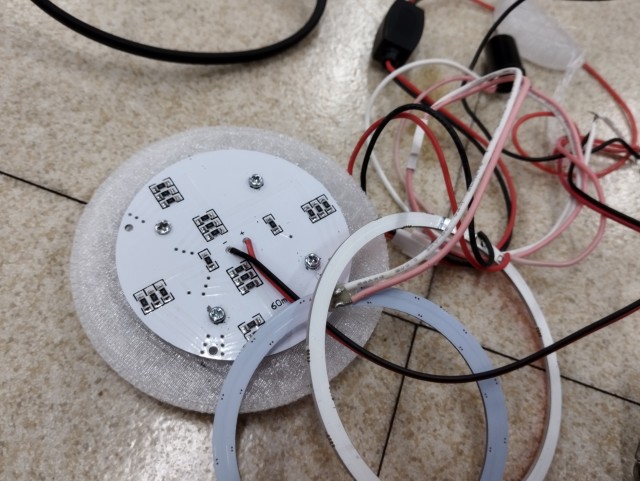

LED parts

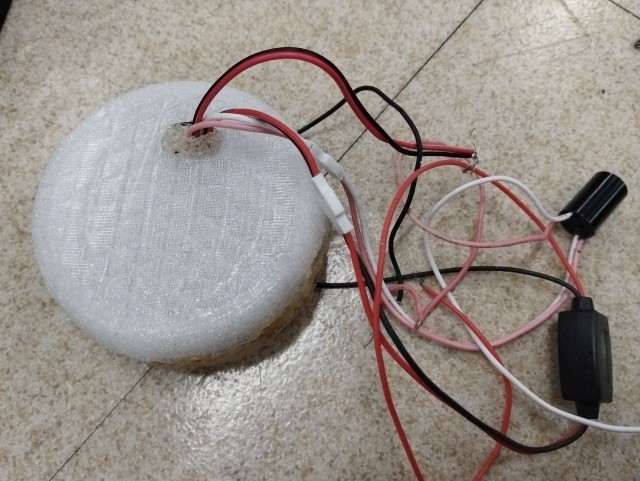

integrated into one parts by soldering technique

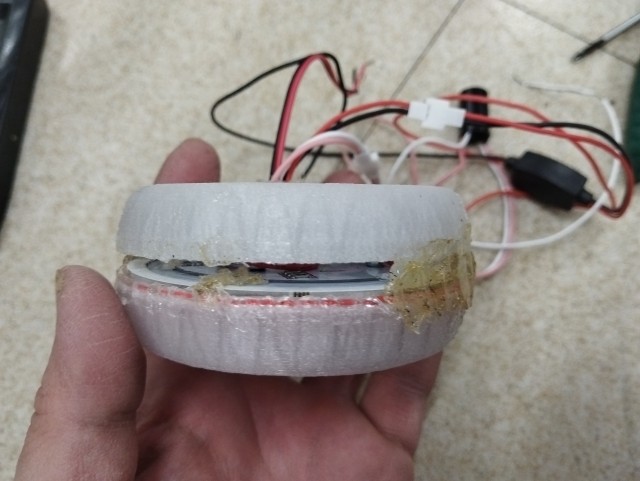

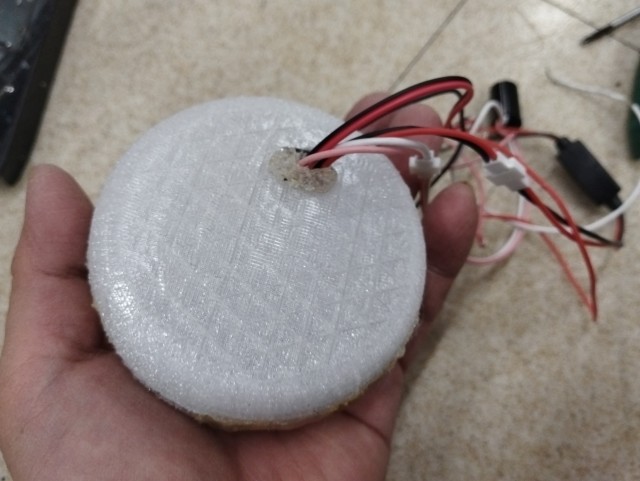

care given for water protection

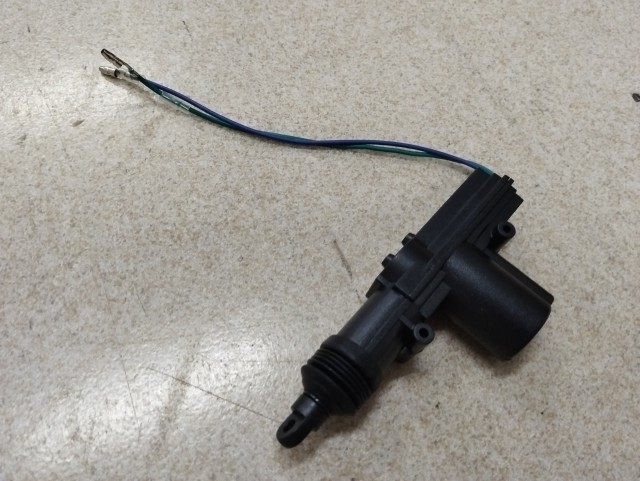

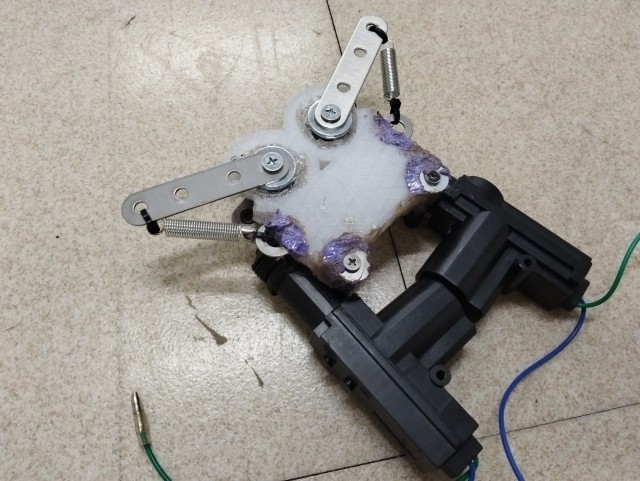

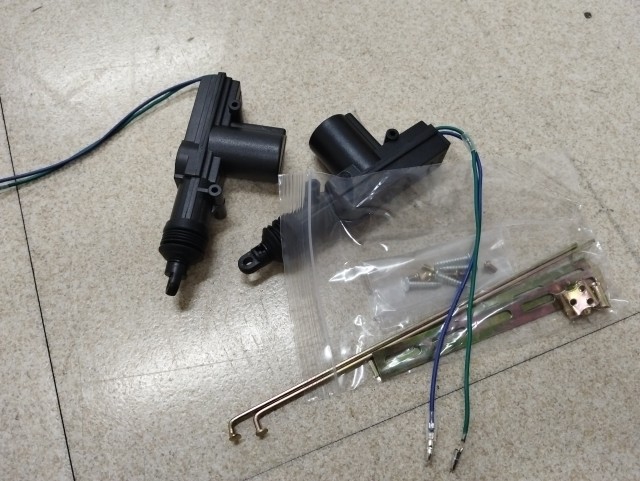

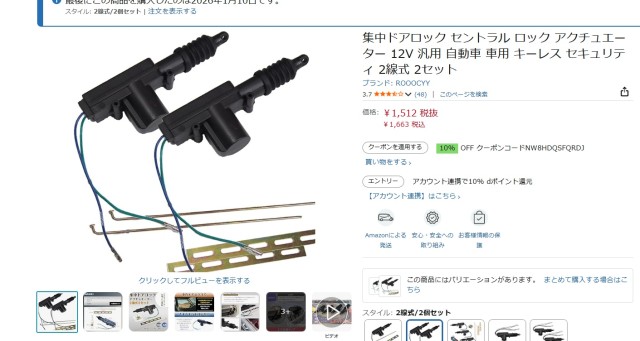

in thise case, 12V door lock motor is used
because of water protection, high-power, quick-move..

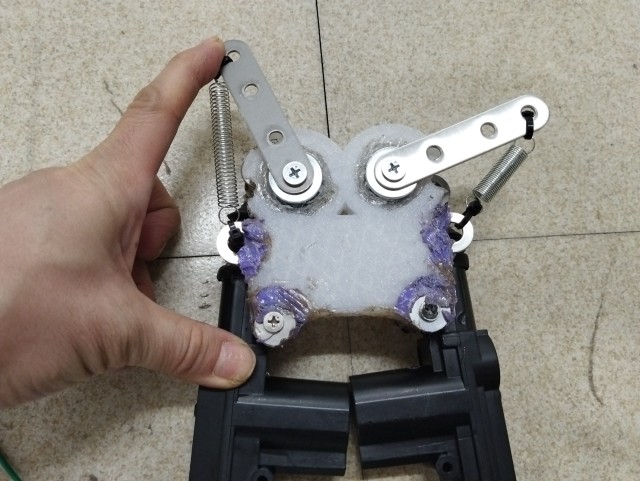

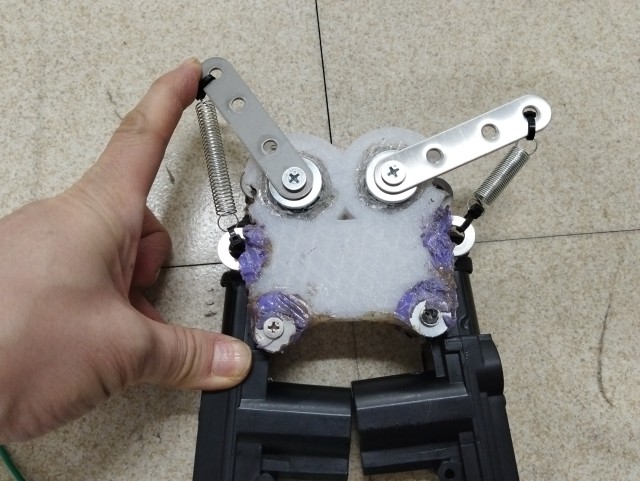

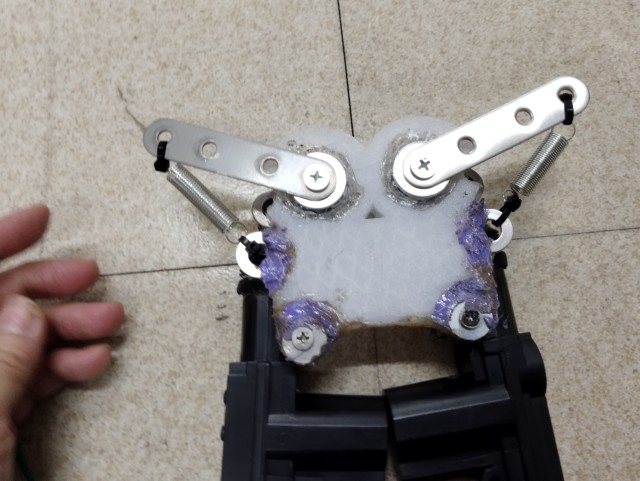

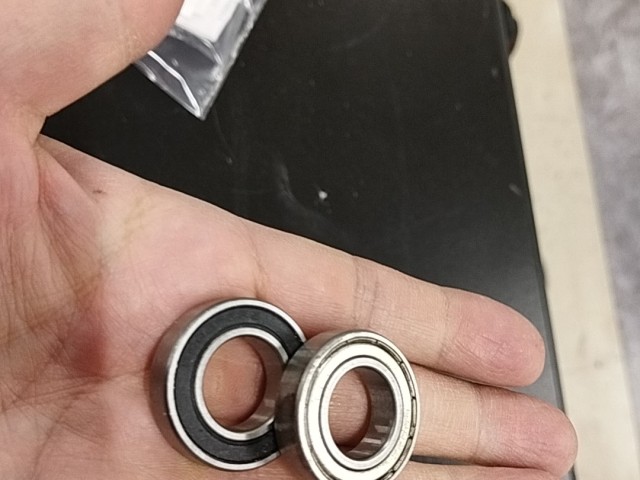

metal bearings


design base plates


test, test, test...


Movie: play MP4 image00
test, test, test...


motor powered within one second

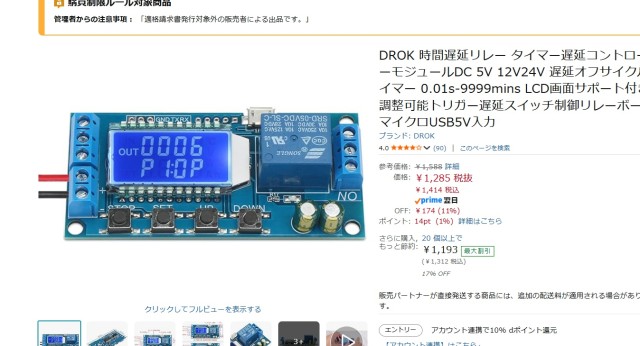

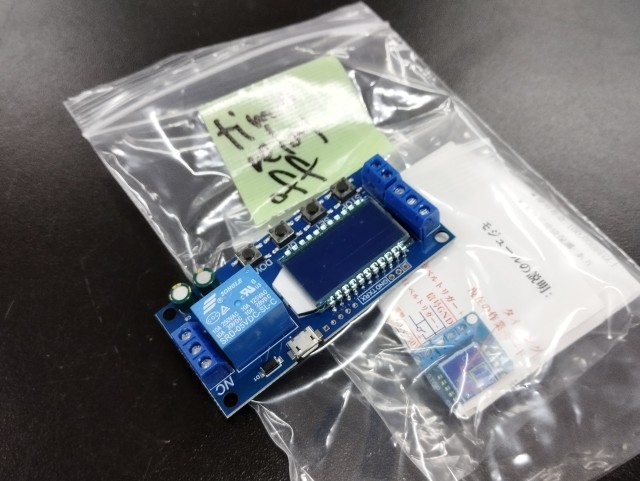

enabed by timer relay

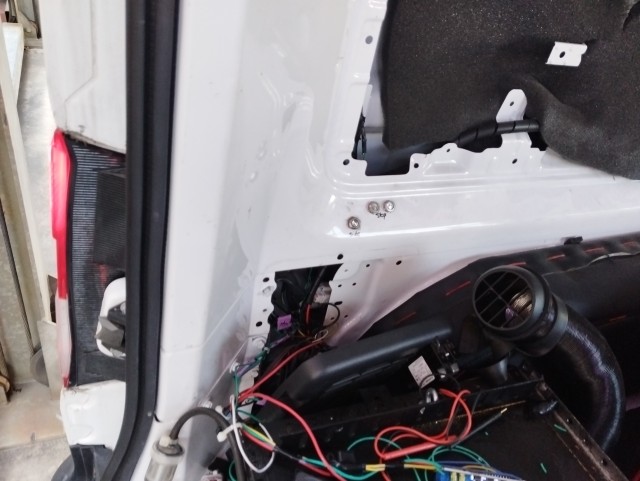

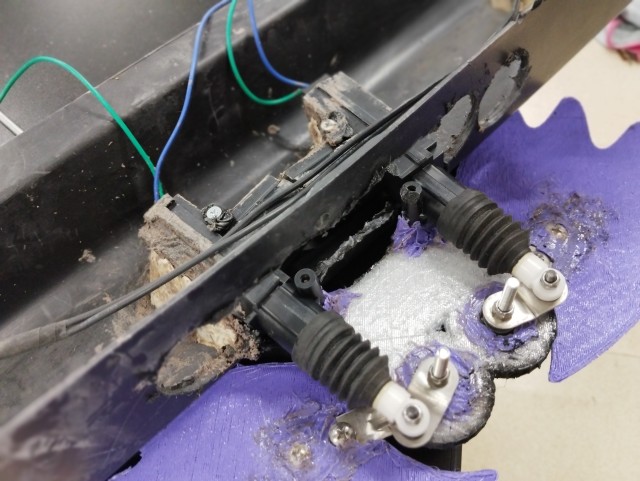

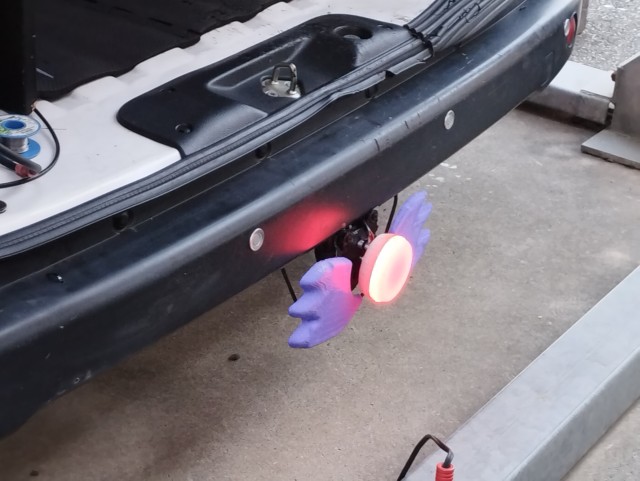

securely fixed to rear bumper

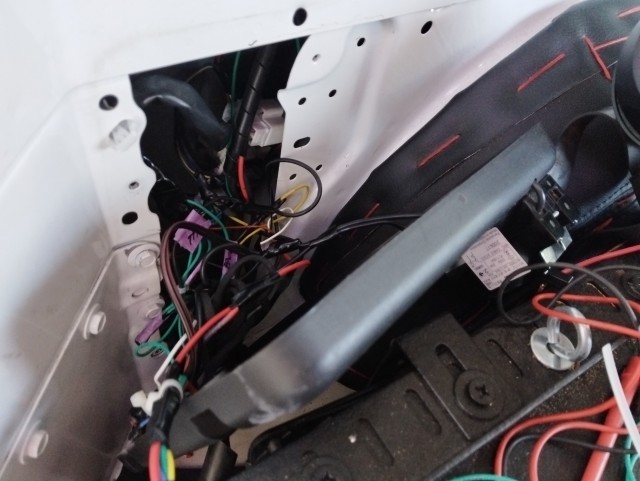

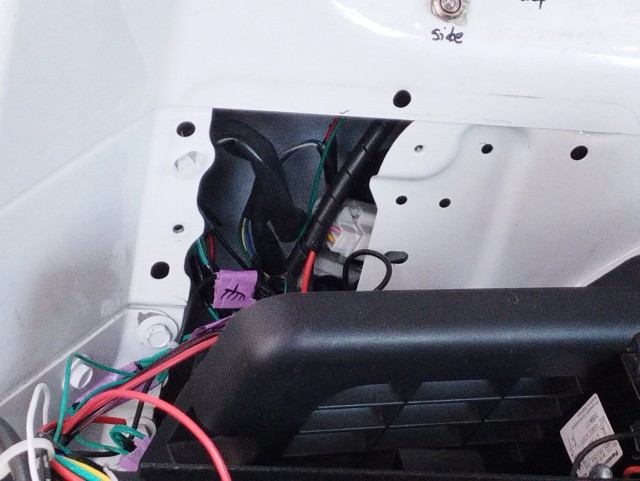

connected to brake and reverse signal
motor power is directly supplied from sub-battery


done!
